How to replace the liftgate lift support on Scion xA?

Beginning the replacement requires removing the back door stay assembly from the LH side by disassembling the two bolts and stay from both the door panel and supporting the back door with your hands throughout the operation. Remove the 2 bolts and the stay by taking them out from the body panel. Install the stay by attaching it with the provided 4 bolts then tighten them to 8.0 Nm (82 kgf.cm, 71 in.lbf) torque setting. The installation step on the RH side follows identical steps as the LH side.

How to dispose of the liftgate lift support assembly LH safely on Scion xA?

The back door stay assembly LH should be fixed horizontally in a vise with the piston-rod extended when performing disposal. Cut the material portion between points A and B through gradual metal sawing with safety glasses in place to release the gas. Be sure to cover the cutting area since the metal debris can discharge through the colorless and odorless harmless gas. The same methods should apply to handle the RH back door stay assembly.

OEM Scion xA Liftgate Lift Support

Back Door Stay

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

2 Liftgate Lift Supports found

View related parts

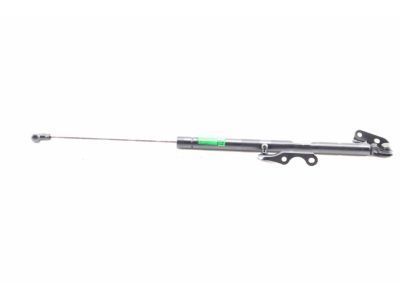

Scion xA Lift Cylinder, Driver Side
Part Number: 68960-59046
$43.49 MSRP: $60.53
You Save: $17.04 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Stay Assembly, Back Door; Liftgate Lift Support, Rear Left; Back Glass Lift Support; Door Lift Support; Stay Assembly, Back Door, Driver Side; Liftgate Lift Support; Lift Support
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2004-2006 Scion xA | Base | 4 Cyl 1.5 L GAS
View related parts
Scion xA Lift Cylinder, Passenger Side
Part Number: 68950-59076
$43.49 MSRP: $60.53
You Save: $17.04 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Stay Assembly, Back Door; Liftgate Lift Support, Rear Right; Back Glass Lift Support; Door Lift Support; Stay Assembly, Back Door, Passenger Side; Liftgate Lift Support; Lift Support
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2004-2006 Scion xA | Base | 4 Cyl 1.5 L GAS

Scion xA Liftgate Lift Support

Choose genuine Liftgate Lift Support that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Liftgate Lift Support for your Scion xA? Our website is your one-stop destination. We stock an extensive selection of genuine Scion xA parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

Scion xA Liftgate Lift Support Parts and Q&A

Lift Cylinder, Passenger Side
68950-59076
Q: How to replace the liftgate lift support on Scion xA?
A:
Beginning the replacement requires removing the back door stay assembly from the LH side by disassembling the two bolts and stay from both the door panel and supporting the back door with your hands throughout the operation. Remove the 2 bolts and the stay by taking them out from the body panel. Install the stay by attaching it with the provided 4 bolts then tighten them to 8.0 Nm (82 kgf.cm, 71 in.lbf) torque setting. The installation step on the RH side follows identical steps as the LH side.
Lift Cylinder, Driver Side
68960-59046
Q: How to dispose of the liftgate lift support assembly LH safely on Scion xA?
A:
The back door stay assembly LH should be fixed horizontally in a vise with the piston-rod extended when performing disposal. Cut the material portion between points A and B through gradual metal sawing with safety glasses in place to release the gas. Be sure to cover the cutting area since the metal debris can discharge through the colorless and odorless harmless gas. The same methods should apply to handle the RH back door stay assembly.
