How to remove and replace the Starter on Scion tC?

The first step for 2AZ-FE Starter removal and replacement requires users to disconnect the negative battery cable and wait 90 seconds before continuing to avoid Air Bag and seat belt pretensioner activation. Disassembly of the starter assembly entails disconnecting the starter connector then opening the terminal cap before removing the nut to disconnect the starter wire and the 2 bolts that secure the starter.

How to install the Starter on Scion tC?

In the installation process of the starter assembly for 2AZ-FE engines you need to place 2 bolts on the starter and torque them to 37 Nm (380 kgf-cm, 27 ft-lbf). Fasten the starter wire using a nut that should be torqued to reach 9.8 Nm (100 kgf-cm, 7 ft-lbf). The terminal cap needs covering before attaching the starter connector. You should attach the cable to the negative end of the battery. A necessary step before closing the negative terminal cable connection is initialization after reattachment.

OEM Scion tC Starter

Starter Ignition

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

4 Starters found

View related parts
Scion tC Starter Part Number: 28100-20022
$254.77 MSRP: $363.76
You Save: $108.99 (30%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Starter Assembly; Starter Motor
- Manufacturer Note: 12V 1.7KW
- Replaces: 28100-20021
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2010 Scion tC | Base | 4 Cyl 2.4 L GAS
View related parts
Scion tC Starter Part Number: 28100-20020-84
$156.25 MSRP: $219.85
You Save: $63.60 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Starter Assembly; Starter Motor
- Replaces: 28100-20020
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2007-2010 Scion tC | Base, Spec | 4 Cyl 2.4 L GAS
View related parts
Scion tC Starter Part Number: 28100-28041-84
$166.32 MSRP: $234.13
You Save: $67.81 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Starter Assembly; Starter Motor
- Replaces: 28100-28040, 28100-28041
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2009, 2005-2006 Scion tC | Base | 4 Cyl 2.4 L GAS
View related parts

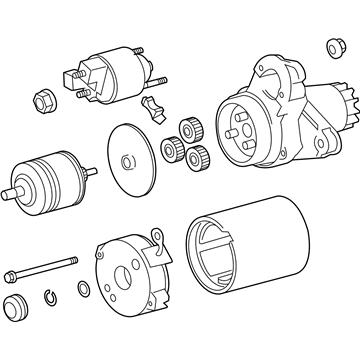

Scion tC Starter Assembly Part Number: 28100-36120
$247.20 MSRP: $352.95
You Save: $105.75 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Starter Motor; Starter
- Manufacturer Note: 12V 1.7KW
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2011-2016 Scion tC | Base | 4 Cyl 2.5 L GAS

Scion tC Starter

Choose genuine Starter that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Starter for your Scion tC? Our website is your one-stop destination. We stock an extensive selection of genuine Scion tC parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

The Scion tC Starter uses battery power to produce the motion that rotates the engine to get it started. Power is supplied to the unit through heavy gauge wiring. An externally mounted solenoid wired to the ignition switch and a relay activates it. The relay and the safety switch kept the vehicle from starting while in gear. Within the small casing, a rotating armature is located between a stator-coil or permanent magnet; when a current passes through, the electromagnetic force produces the spin of the armature. The Starter drive's rotation turns the pinion, which makes contact with the flywheel or flexplate ring gear as the solenoid pushes it forward. After starting the engine, the pinion is prevented from damage by an overrunning clutch. Some constructions employ a gear arrangement which provides reduction gears to be added between the armature and the drive to provide additional torque without increasing the Starter assembly. The tC utilizes this Starter setup for ignition across Scion vehicles. Adequate battery voltage is essential for the Scion tC system to provide the required torque to the Starter motor. The tC application follows the usual design as reported inside the Scion hatchback.

Scion tC Starter Parts and Q&A

Starter
28100-20022
Q: How to remove and replace the Starter on Scion tC?
A:
The first step for 2AZ-FE Starter removal and replacement requires users to disconnect the negative battery cable and wait 90 seconds before continuing to avoid Air Bag and seat belt pretensioner activation. Disassembly of the starter assembly entails disconnecting the starter connector then opening the terminal cap before removing the nut to disconnect the starter wire and the 2 bolts that secure the starter.
Starter
28100-20020-84
Q: How to install the Starter on Scion tC?
A:
In the installation process of the starter assembly for 2AZ-FE engines you need to place 2 bolts on the starter and torque them to 37 Nm (380 kgf-cm, 27 ft-lbf). Fasten the starter wire using a nut that should be torqued to reach 9.8 Nm (100 kgf-cm, 7 ft-lbf). The terminal cap needs covering before attaching the starter connector. You should attach the cable to the negative end of the battery. A necessary step before closing the negative terminal cable connection is initialization after reattachment.
