How to replace the Seat Position Air Bag Sensor on 2005 Toyota Corolla?

Safety precautions for Air Bag Systems need to be followed before starting to replace the Seat Position Air Bag Sensor. Unplug the battery negative terminal then wait for at least 90 seconds before starting the work. Start by disconnecting the front LH seat assembly before removing the front seat cushion shield LH together with the seat slide position sensor protector. A torx socket wrench (T30) should be used to remove the torx screw which allows release of the seat position Air Bag sensor after disconnecting its connector. The installation of the new seat position Air Bag sensor requires a disconnected battery terminal with minimum 90-second waiting time while the ignition switch remains off. A 1 mm (0.039 in.) feeler gauge is used for installing the sensor with a damage check; replace the sensor if it experienced a fall or exhibits any defects. Inspection must confirm both SRS wiring clearness with other components and the 0.6 mm (0.023 in.) to 2 mm (0.079 in.) range between the seat position Air Bag sensor and seat rail. Verify that the sensor installation has no looseness after tightening the torx screw to 8.0 N.m (82 kgf.cm, 71 in.lbf). Hook up the connector to the seat position Air Bag sensor after reinstalling the seat slide position sensor protector and the front seat cushion shield LH together with the front LH seat assembly. After reconnecting the battery negative terminal you must check for the SRS warning light activation.

OEM 2005 Toyota Corolla Air Bag Sensor

Air Bag Impact Sensor

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

5 Air Bag Sensors found

View related parts
2005 Toyota Corolla Front Impact Sensor
Part Number: 89173-09120
$103.56 MSRP: $124.85
You Save: $21.29 (18%)
ADD TO CART
Product Specifications
- Other Name: Sensor, Air Bag, Front; Air Bag Impact Sensor, Front; Air Bag Sensor; Front Sensor; Sensor, Air Bag, Front Passenger Side; Sensor, Air Bag, Front Driver Side
- Position: Front
- Item Weight: 0.70 Pounds
- Item Dimensions: 4.7 x 3.0 x 2.2 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 89173-09120
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
More Info
Fits the following 2005 Toyota Corolla Submodels:
- CE, LE, S, XRS | 4 Cyl 1.8 L GAS
View related parts
2005 Toyota Corolla Side Impact Sensor, Front
Part Number: 89831-02040
$103.08 MSRP: $124.29
You Save: $21.21 (18%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor, Side Air Bag; Air Bag Impact Sensor, Front, Upper; Air Bag Sensor; Side Sensor; Sensor Assembly, Side Air Bag, Passenger Side; Sensor Assembly, Side Air Bag, Driver Side
- Position: Front
- Item Weight: 0.60 Pounds
- Item Dimensions: 4.2 x 2.6 x 2.1 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 89831-02040
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
More Info
Fits the following 2005 Toyota Corolla Submodels:
- CE, LE, S, XRS | 4 Cyl 1.8 L GAS
View related parts
2005 Toyota Corolla Side Impact Sensor, Lower
Part Number: 89831-02030
$90.76 MSRP: $109.42
You Save: $18.66 (18%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor, Side Air Bag; Air Bag Impact Sensor, Lower; Air Bag Sensor; Side Sensor; Sensor Assembly, Side Air Bag, Passenger Side; Sensor Assembly, Side Air Bag, Driver Side
- Manufacturer Note: NO.1
- Position: Lower
- Item Weight: 0.60 Pounds
- Item Dimensions: 4.2 x 2.6 x 2.0 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 89831-02030
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
More Info
Fits the following 2005 Toyota Corolla Submodels:
- CE, LE, S, XRS | 4 Cyl 1.8 L GAS
View related parts

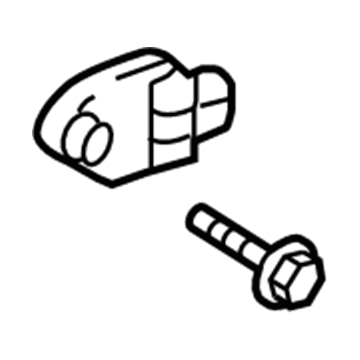

2005 Toyota Corolla Position Sensor, Front Driver Side
Part Number: 89178-33020
$99.17 MSRP: $139.20
You Save: $40.03 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor, Seat Position; Seat Track Position Sensor, Front Left; Air Bag Seat Sensor Mat, Front Left; Air Bag Sensor; Occupant Sensor; Discriminating Sensor; Sensor, Seat Position Air Bag
- Position: Front Driver Side
- Part Name Code: 89178A
- Item Weight: 0.50 Pounds
- Item Dimensions: 2.2 x 1.6 x 1.3 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 89178-33020
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
More Info
Fits the following 2005 Toyota Corolla Submodels:
- CE, LE, S, XRS | 4 Cyl 1.8 L GAS
View related parts
2005 Toyota Corolla Front Impact Sensor
Part Number: 89173-09170
Product Specifications
- Other Name: Sensor, Air Bag, Front; Air Bag Impact Sensor; Air Bag Sensor; Front Sensor
- Position: Front
- Replaces: 89173-09137
- Condition: New
- SKU: 89173-09170
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following 2005 Toyota Corolla Submodels:
- CE, LE, S, XRS | 4 Cyl 1.8 L GAS

2005 Toyota Corolla Air Bag Sensor

Looking for affordable OEM 2005 Toyota Corolla Air Bag Sensor? Explore our comprehensive catalogue of genuine 2005 Toyota Corolla Air Bag Sensor. All our parts are covered by the manufacturer's warranty. Plus, our straightforward return policy and speedy delivery service ensure an unparalleled shopping experience. We look forward to your visit!

2005 Toyota Corolla Air Bag Sensor Parts Q&A

Q: How to replace the Seat Position Air Bag Sensor on 2005 Toyota Corolla?
A: Safety precautions for Air Bag Systems need to be followed before starting to replace the Seat Position Air Bag Sensor. Unplug the battery negative terminal then wait for at least 90 seconds before starting the work. Start by disconnecting the front LH seat assembly before removing the front seat cushion shield LH together with the seat slide position sensor protector. A torx socket wrench (T30) should be used to remove the torx screw which allows release of the seat position Air Bag sensor after disconnecting its connector. The installation of the new seat position Air Bag sensor requires a disconnected battery terminal with minimum 90-second waiting time while the ignition switch remains off. A 1 mm (0.039 in.) feeler gauge is used for installing the sensor with a damage check; replace the sensor if it experienced a fall or exhibits any defects. Inspection must confirm both SRS wiring clearness with other components and the 0.6 mm (0.023 in.) to 2 mm (0.079 in.) range between the seat position Air Bag sensor and seat rail. Verify that the sensor installation has no looseness after tightening the torx screw to 8.0 N.m (82 kgf.cm, 71 in.lbf). Hook up the connector to the seat position Air Bag sensor after reinstalling the seat slide position sensor protector and the front seat cushion shield LH together with the front LH seat assembly. After reconnecting the battery negative terminal you must check for the SRS warning light activation.
