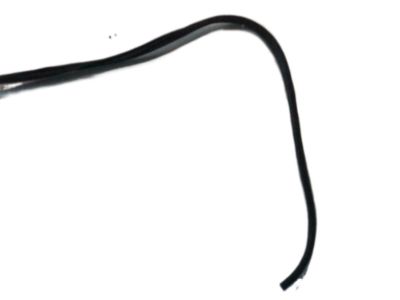

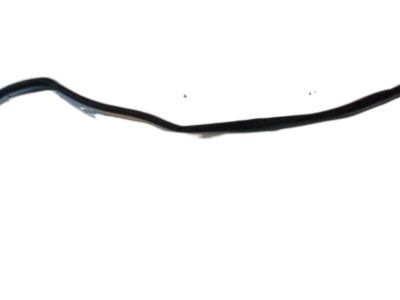

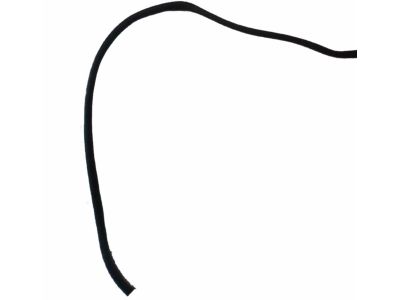

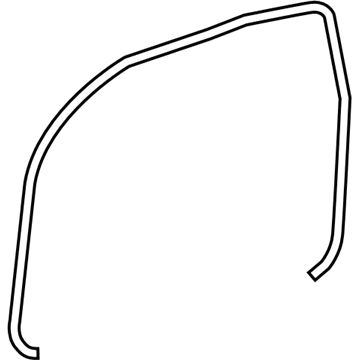

Toyota 62311-04041
Surround Weatherstrip, Passenger Side

The first step to install a rear door window glass Weather Strip requires disconnecting the cable attached to the negative battery terminal. Start by taking out the rear door frame garnish LH together with the power window regulator switch assembly rear and door assist grip assembly RH and rear door trim panel assembly LH. First tape the protective tape around the outer hoard of the rear door glass Weather Strip outer LH while using a moulding remover to separate its 6 claws. To install a new exterior rear door glass Weather Strip on the left-hand side you must engage its 6 claws. The final step involves putting back the rear door trim panel assembly LH together with the door assist grip assembly RH and power window regulator switch assembly rear before attaching the rear door frame garnish LH. The cable hook-up to the negative battery terminal must be completed while using a torque tool to apply 3.9 N.m (40 kgf.cm, 35 in.lbf) force.

Before you replace the front door window glass Weather Strip you should disconnect the cable connected to the negative terminal of the battery. The procedure for front door glass Weather Strip replacement begins by removing the front door lower frame bracket garnish LH and the front door window regulator handle assembly together with the door assist grip cover LH and the front armrest base panel sub-assembly upper LH and the front door trim panel assembly LH and the outer rear view mirror assembly LH. First apply protective tape to the front door glass Weather Strip assembly outer LH while using a moulding remover to disengage the 5 claws from its outer circumference. You should install the new LH front door glass Weather Strip assembly by connecting its 5 claws. Put back in order the outer rear view mirror assembly LH followed by the front door trim panel assembly LH and then the front armrest base panel sub-assembly upper LH and finally the door assist grip cover LH and front door window regulator handle assembly. You must reinstall the front door lower frame bracket garnish LH before connecting the cable to the negative battery terminal with 3.9 N.m torque (40 kgf.cm, 35 in.lbf).
