Toyota 53805-0C011
Liner Extension, Passenger Side

2007-2013 Toyota Tundra 538050C011

Customer Questions & Expert Answers (6)

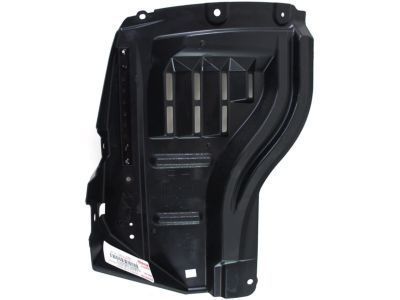

Toyota 53805-0C011 Liner Extension, Passenger Side
Toyota 53805-0C011 Liner Extension, Passenger Side
Toyota 53805-0C011 Liner Extension, Passenger Side
  • Part Description
    Shield Sub-Assembly, Fender Splash; Fender Liner Extension, Front Right; Fender Splash Shield
  • Part Name Code
    53805
  • Position
    Passenger Side
  • Replaces
    53805-0C010
  • Manufacturer
    Toyota
Make sure this part fits
$42.20 MSRP: $58.74
You Save: $16.54 (29%)
Ships in 1-3 Business Days
1
ADD TO CART
  • Related Parts
  • Product Specifications
  • Vehicle Fitment
  • Customer Questions & Expert Answers

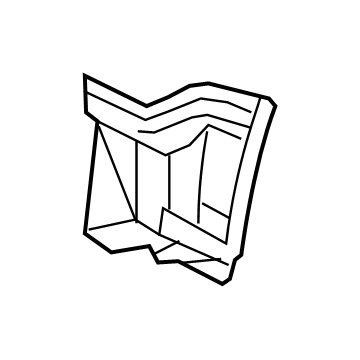

  • 53805-0C011 Liner Extension, Passenger Side is Ref No. 12 in the diagram below

    2008 Toyota Tundra Liner Extension, Passenger Side Diagram for 53805-0C011
    The diagram listed above is for your reference. View diagram for your vehicle

    Related Parts for 53805-0C011

  • Product Specifications

    BrandGenuine Toyota
    Part Name Code53805
    Manufacturer Part Number53805-0C011
    Part DescriptionShield Sub-Assembly, Fender Splash; Fender Liner Extension, Front Right; Fender Splash Shield
    Other NamesShield Sub-Assembly, Front Fender Splash, Passenger Side
    Item Dimensions23.1 x 15.5 x 0.5 inches
    Item Weight1.30 Pounds
    PositionPassenger Side
    ConditionNew
    Fitment TypeDirect Replacement
    Replaces53805-0C010
    ManufacturerToyota
    SKU53805-0C011
    WarrantyThis genuine Toyota part is guaranteed by Toyota's factory warranty.
    Shipping & ReturnShipping Policy Return Policy
    Warning: California's Proposition 65

  • Vehicle Fitment

    Year Make Model Trim Engine
    2007-2013 Toyota TundraBase, Limited, Platinum, SR56 Cyl 4.0 L GAS, 8 Cyl 4.6 L GAS, 8 Cyl 4.7 L GAS, 8 Cyl 5.7 L FLEX, 8 Cyl 5.7 L GAS

  • Customer Questions & Expert Answers

    Q:
    Will this 53805-0C011 work for my car? Posted by ToyotaPartsNow Specialist
    A:
    Find out if part number 53805-0C011 is the right fit for your car by Selecting Your Vehicle model.
    Posted by ToyotaPartsNow Specialist
    Q:
    How to remove and install the front Wheelhouse on the LH side for Steel and Resin Type Bumpers on Toyota Tundra? Posted by Customer
    A:
    The fender apron mudguard seal can be detached by unfastening 18 clips when using a Steel Type Bumper or 17 clips if using Resin Type Bumper. Prior to this removal process it's necessary to remove the side step and fender mudguard and pin hold clip from both bumper types. The first step in front fender splash shield sub-assembly removal calls for the removal of three clips and two screws for Steel Type Bumpers and the removal of the pin hold clip together with two clips and two screws for Resin Type Bumpers. You need to install the front fender splash shield sub-assembly first; to do this for a Steel Type Bumper use 2 screws with a clip and 2 new clips A but for a Resin Type Bumper apply 2 screws followed by 2 clips by maintaining 5.4 N.m (55 kgf.cm, 48 in.lbf) torque and position the pin hold clip with its groove vertical orientation. To finish the installation, install the fender apron mudguard seal using three clips and fifteen new clips labeled A according to a Steel Type Bumper procedure and two clips and fifteen new clips labeled A for a Resin Type Bumper before placing the front fender mudguard and side step when the pin hold clip remains vertical.
    Posted by ToyotaPartsNow Specialist
    Q:
    How to install the rear Wheelhouse on the LH side on Toyota Tundra? Posted by Customer
    A:
    Starting with the installation of rear wheel house liner (front) on the LH side requires 4 new clips and 2 screws. The installation of rear wheel house liner (rear) requires 7 new clips and 2 screws for completion while the absence of a rear fender mudguard allows for the liner's installation. Begin by installing the rear wheel house liner (rear) with 7 new clips and 1 screw and then complete the installation with the mudguard when a rear fender mudguard exists. You should use 9 new clips and 6 screws to install the rear wheel house liner (center). Continue installing by applying the same procedure to the right-hand side of the vehicle.
    Posted by ToyotaPartsNow Specialist
    Q:
    What is the first step to install the front fender liner on the LH side for the 2009 Toyota Tundra? Posted by Customer
    A:
    Begin by installing the front fender splash shield sub-assembly.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Wheelhouse
    Q:
    What is the final step in the installation process for the 2007 Toyota Tundra? Posted by Customer
    A:
    Install the center section of the rear wheel house liner using 9 new clips and 6 screws.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Wheelhouse
    Q:
    What is the next step after installing the fender splash shield for the 2008 Toyota Tundra? Posted by Customer
    A:
    Install the fender apron mudguard seal.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Wheelhouse
    If you have any questions about this product, please don't hesitate to ask us. We will be happy to help you!
