Make sure this part fits

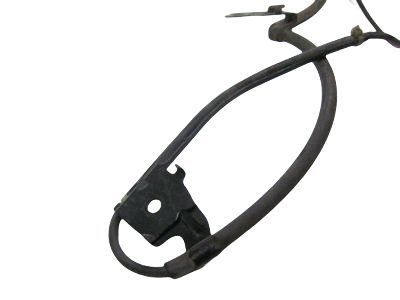

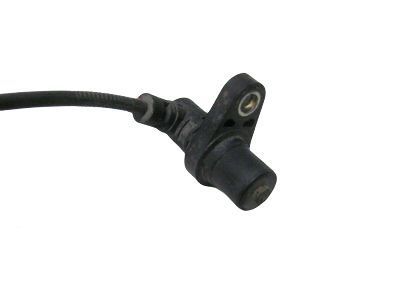

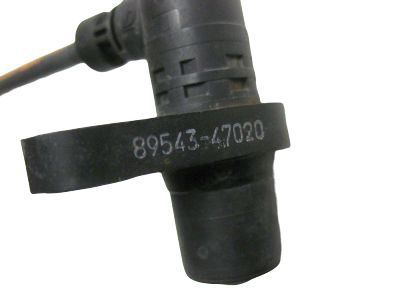

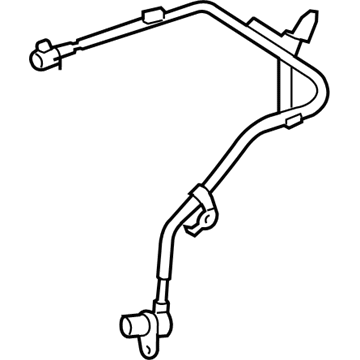

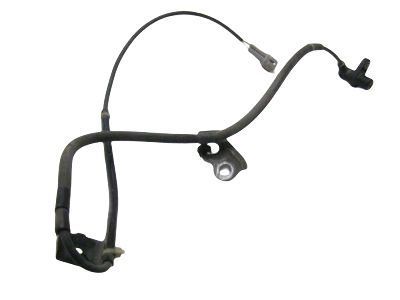

Toyota 89543-47020
Speed Sensor, Front Driver Side

2004-2009 Toyota Prius 8954347020

Customer Questions & Expert Answers (7)
Toyota 89543-47020 Speed Sensor, Front Driver Side
Toyota 89543-47020 Speed Sensor, Front Driver Side
Toyota 89543-47020 Speed Sensor, Front Driver Side
Toyota 89543-47020 Speed Sensor, Front Driver Side
Toyota 89543-47020 Speed Sensor, Front Driver Side
Toyota 89543-47020 Speed Sensor, Front Driver Side
Toyota 89543-47020 Speed Sensor, Front Driver Side
  • Part Description
    Sensor, Speed, Front Left-Hand; ABS Wheel Speed Sensor, Front Left; ABS Sensor
  • Part Name Code
    89543
  • Position
    Front Driver Side
  • Manufacturer
    Toyota
Make sure this part fits
$238.11 MSRP: $339.97
You Save: $101.86 (30%)
Ships in 1-2 Business Days
1
ADD TO CART
  • Related Parts
  • Product Specifications
  • Vehicle Fitment
  • Customer Questions & Expert Answers

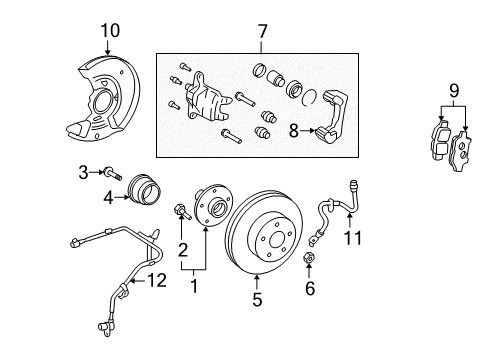

  • 89543-47020 Speed Sensor, Front Driver Side is Ref No. 12 in the diagram below

    2004 Toyota Prius Speed Sensor, Front Driver Side Diagram for 89543-47020
    The diagram listed above is for your reference. View diagram for your vehicle

    Related Parts for 89543-47020

  • Product Specifications

    BrandGenuine Toyota
    Part Name Code89543
    Manufacturer Part Number89543-47020
    Part DescriptionSensor, Speed, Front Left-Hand; ABS Wheel Speed Sensor, Front Left; ABS Sensor
    Other NamesFront Speed Sensor; Sensor, Speed, Front Driver Side; ABS Wheel Speed Sensor
    Item Dimensions18.2 x 13.5 x 3.2 inches
    Item Weight1.10 Pounds
    PositionFront Driver Side
    ConditionNew
    Fitment TypeDirect Replacement
    ManufacturerToyota
    SKU89543-47020
    WarrantyThis genuine Toyota part is guaranteed by Toyota's factory warranty.
    Shipping & ReturnShipping Policy Return Policy
    Warning: California's Proposition 65

  • Vehicle Fitment

    Year Make Model Trim Engine
    2004-2009 Toyota PriusBase, Touring4 Cyl 1.5 L FULL HYBRID EV-GAS (FHEV)

  • Customer Questions & Expert Answers

    Q:
    Can you provide the right 89543-47020 for my car? Posted by ToyotaPartsNow Specialist
    A:
    Find out if part number 89543-47020 is the right fit for your car by Selecting Your Vehicle model.
    Posted by ToyotaPartsNow Specialist
    Q:
    How do you clean the speed sensor's fitting surface for the 2004 Toyota Prius? Posted by Customer
    A:
    Clean it with white gasoline to prevent contamination.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Speed Sensor
    Q:
    How do you detach the speed sensor from the rear axle hub and bearing assembly for the 2005 Toyota Prius? Posted by Customer
    A:
    Remove the 2 pins from the Special Service Tool: 09520-00031, then use the Special Service Tool: 09520-00040 and 2 bolts (90101-12007) to detach the speed sensor.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Speed Sensor
    Q:
    What are the torque specifications for bolts A and B for the 2007 Toyota Prius? Posted by Customer
    A:
    Torque bolt A to 8.0 N.m (82 kgf.cm, 71 in.lbf) and bolt B to 19 N.m (192 kgf.cm, 14 ft.lbf), ensuring bolt B is tightened together with the brake flexible hose clamp placed above.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Speed Sensor
    Q:
    What torque should be applied to bolt A and bolt B for the 2009 Toyota Prius? Posted by Customer
    A:
    Apply a torque of 8.0 Nm (82 kgf-cm, 71 in-lbf) for bolt A and 19 Nm (192 kgf-cm, 14 ft-lbf) for bolt B.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Speed Sensor
    Q:
    What is the installation process for the speed sensor for the 2006 Toyota Prius? Posted by Customer
    A:
    Clean the connecting portion of the sensor, install it with the bolt, and torque it to 8.0 N.m (82 kgf.cm, 71 in.lbf).
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Speed Sensor
    Q:
    How should the sensor clamps be secured for the 2008 Toyota Prius? Posted by Customer
    A:
    Secure the sensor clamps to the body and front shock absorber with bolts A and B, applying a torque of 8.0 Nm (82 kgf-cm, 71 in-lbf) for bolt A and 19 Nm (192 kgf-cm, 14 ft-lbf) for bolt B, ensuring that bolt B is tightened together with the brake flexible hose clamp placed above the sensor clamp.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Speed Sensor
    If you have any questions about this product, please don't hesitate to ask us. We will be happy to help you!

OEM Toyota 89543-47020, Excellent Performance and Perfect Fitment

To ensure reliability, purchase Toyota part # 89543-47020 Speed Sensor, Front Driver Side. It is sometimes referred to as Toyota Speed Sensor. OEM parts are unrivaled in terms of quality. They go through extensive quality control inspections and are produced in accordance with Toyota's official factory specifications. All of these remove defects and imperfections. So you can relax knowing they promise exceptional lifespan and flawless fitment.

ToyotaPartsNow.com is a leading supplier of genuine Toyota parts such as Toyota 8954347020 Speed Sensor, Front Driver Side. At ToyotaPartsNow.com, we have a wide variety of OEM Toyota parts available at competitive prices. Our comprehensive range of genuine Toyota parts come with a manufacturer's warranty for peace of mind. We also prioritize customer satisfaction, providing a hassle-free return policy and expedited delivery for all our parts. For detailed Toyota parts information, click here.
