Toyota 04152-YZZA6

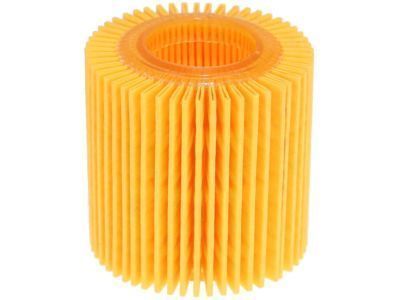

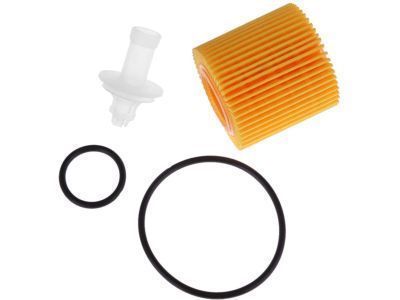

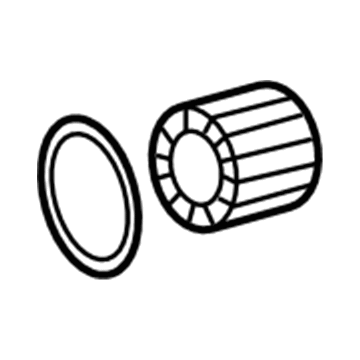

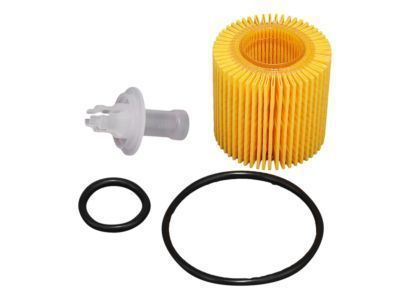

Filter Element

You should drain all engine oil before replacing the oil filter that belongs to the 2ZR-FE engine by removing the oil pan drain plug. Install the clean drain plug onto its new gasket before torquing it to 37 Nm (377 kgf-cm, 27 ft-lbf). A technician should utilize Special Service Tool: 09228-06501 to take off the oil filter cap while capturing draining oil in a container. Turn the cap about four times loose until oil starts to drop between the opening between the cap and oil pan. Extricate the oil filter element as well as the O-ring from the cap with hand manipulation to prevent damaging the groove. Application of engine oil to a new O-ring follows cleaning the inside of the oil filter cap where threads and O-ring groove reside. Install the O-ring onto the cap before inserting a new oil filter element into it. A new oil filter element should receive engine oil on its O-ring before the cap reinstall. Wash the engine mounting surface then place the new oil filter element into the cap. Another skill usage tool known as Special Service Tool: 09228-06501 enables users to tighten the cap with a force of 25 Nm (255 kgf-cm, 18 ft-lbf) to install the oil filter correctly without damaging the O-ring. Complete engine oil addition follows a check of the recommended oil amount while also looking for both leaks and proper oil level measurement.

Drain the engine oil by removing the oil pan drain plug and allowing the oil to flow out completely.

Clean the inside of the oil filter cap, threads, and O-ring groove.

Begin by draining the engine oil by removing the oil pan drain plug and allowing the oil to flow out completely.

Align the cutout in the oil filter cap threads 90° to the grooves in the oil filter bracket and temporarily tighten the cap, ensuring the O-ring does not get caught.

Wear protective clothing and gloves to avoid skin contact with engine oil, which can cause dryness and irritation. Wash your skin thoroughly after handling oil and dispose of used oil and filters at designated sites.
