Toyota 85242-12090

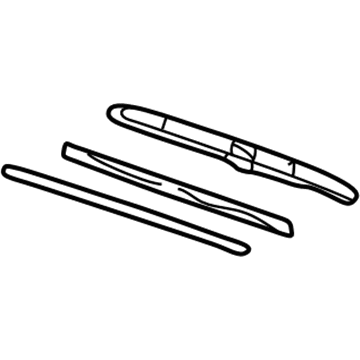

Wiper Blade, Rear

Begin by removing the rear wiper blade through these steps: Elevate the blade to cause a click sound from the claw until detachment before extracting the blade perpendicular to the left of your vehicle from the wiper arm without bending it. You can access the rear wiper rubber for removal by placing the wiper blade with the rubber extending beyond the stopper but avoid strong pulling motions which could deform backing plates or break the blade claw. A push on the middle section of the blade will help lift the rubber for easier handling. Start by fitting both wiper rubber backing plates to the rear wiper rubber with the correct curvature orientation before inserting the rear wiper rubber into the rear end position from the middle of the rear wiper blade. Then push the rubber through the rear end side claw and let it protrude from the rear end stopper and pass through the front tip side claw.

First, remove the front wiper blade LH from the front wiper arm LH, ensuring not to fold down the front wiper arm during this process.

Attach the 2 wiper rubber backing plates to the wiper rubber LH, making sure to install the backing plate in the correct direction.

Push the front wiper blade into the grooves of the wiper rubber to ensure it is fully engaged.

Place the rear wiper with the rear end of the rubber protruding from the blade stopper, ensuring not to pull out the wiper rubber forcibly to avoid deforming the backing plates or damaging the blade claws; it can be easily pulled out by pushing the middle area of the blade.

Avoid forcibly pulling out the wiper rubber to prevent deformation of the backing plates or damage to the blade claws.
