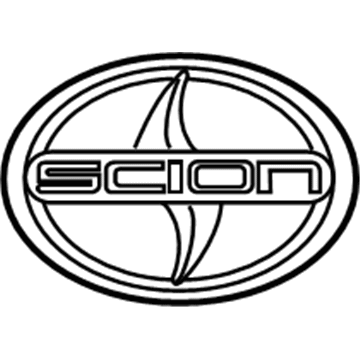

Toyota 75331-52050
Emblem

The first step to install the No. 2 luggage compartment door name plate requires heating the double-sided adhesive tape on the back door panel using an infrared light at 40 to 60 degrees Celsius (104 to 140 degrees Fahrenheit) for 1 to 2 minutes. After heating, use a cloth to remove the tape while it is hot. All tape must be completely removed to avoid adhesion failure while the surface should be cleaned with a non-residue solvent. The installation of the new name plate should happen in environments above 20 degrees Celsius (68 degrees Fahrenheit) or by heating the back door panel and new name plate to temperatures between 20 to 30 degrees Celsius (68 to 86 degrees Fahrenheit). The symbol emblem installation needs the same panel cleaning followed by double-sided tape removal before putting pins into the emblem holes and positioning it with an ambient temperature exceeding 20 degrees Celsius (68 degrees Fahrenheit) or heated to that temperature. The radiator grille emblem installation requires cleaning the engine hood in the same way while eliminating adhesive tape before using 2 pins to secure the emblem correctly under proper installation weather conditions.

Place the name plate for No. 2 luggage compartment door onto the back door panel when it reaches 40 to 60 degrees Celsius (104 to 140 degrees Fahrenheit) using an infrared light for 1 to 2 minutes before removing the tape while it is still hot with a cloth. Ensure all tape is removed to prevent adhesion failure, and clean the surface with a non-residue solvent. Establish an installation area at or above 20 degrees Celsius (68 degrees Fahrenheit) but if the working temperature is below this point heat both the back door panel and name plate to a temperature range between 20 to 30 degrees Celsius (68 to 86 degrees Fahrenheit). To prepare the symbol emblem adhesive area, heat and remove the tape on the back door panel then clean with non-residue solvent before and after installation. Screw in the two pins which hold the emblem in place to attach it on the back door panel when the room temperature exceeds 20 degrees Celsius (68 degrees Fahrenheit) or when heat is applied to the components to reach that threshold. When preparing the front panel attachment area for the radiator grille emblem users should heat the double-sided adhesive tape on the engine hood then remove it while hot followed by non-residue solvent cleaning. Insert the provided pins into the engine hood before placing the emblem in place when the temperature remains above 20 degrees Celsius (68 degrees Fahrenheit) or you should apply heat for proper installation.

Apply protective tape to the back door panel, use the piano wire technique to remove it, being cautious not to damage either the name plate or the vehicle body.

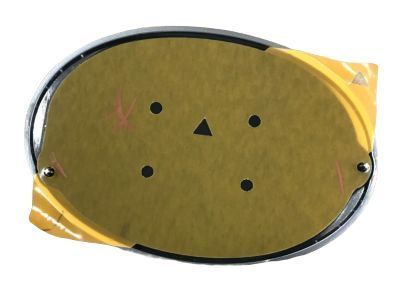

Clean the attachment surface by heating the double-sided adhesive tape on the back door panel, remove it while hot, and clean with a non-residue solvent. Insert the 2 pins into the back door panel and install the emblem, ensuring the ambient temperature is above 20°C (68°F) or heating as necessary.

Apply protective tape to the back door panel, use the piano wire method to remove it, and take care not to damage the name plate or the vehicle body during the process.
