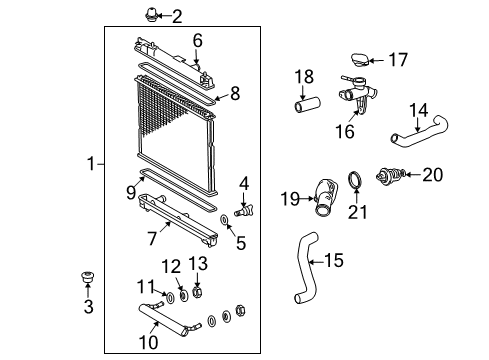

Toyota 16400-21371
Radiator Assembly

A safe way to replace the radiator begins with turning off ignition first since this stops electric cooling fan operation. First drain the engine coolant while removing the engine under cover from left to right sides. Disassemble by first removing the front bumper cover while detach the upper absorber of the radiator support. Remove the air cleaner assembly and take out the No. 1 radiator hose through its clip removal. The technician disconnects the inlet No. 2 oil cooler hose and the outlet No. 1 oil cooler hose which service the automatic transaxle. Users should disconnect the No. 2 radiator hose after loosening its associated clip. Perform the hood lock assembly disassembly by releasing the hood lock control cable assembly from clamps then remove the three bolts. The upper radiator support sub-assembly requires removal of five bolts after disconnecting the horn connector and taking off two clips from the No. 1 cooler cover. The vehicle receives the radiator assembly when you disconnect the cooling fan motor connector, separate the wire harness clamp and release the two claws while paying attention to avoid putting excessive force near the cooler condenser assembly or piping. Operate by detaching the radiator reservoir tank hose from the water filler sub-assembly followed by unbolting these two fasteners and unclipping it before complete removal of the water filler sub-assembly. Begin by removing the fan shroud through disengaging its two claws before you detach the two cushions from the radiator support. The last step requires removal of the radiator drain cock together with unfastening the two radiator reserve tank hose grommets.

A safe method to remove the radiator consists of turning off the ignition first so electric cooling fans stay deactivated. Start the radiator replacement process by removing left and right engine under covers and conducted engine coolant drain procedures. The first step should be to remove the front bumper cover before moving on to the radiator support upper absorber. Start by removing the air cleaner assembly followed by disconnecting the No. 1 radiator hose after loosening its clip. Remove both connections that link the inlet No. 2 oil cooler hose and the outlet No. 1 oil cooler hose. To disconnect the No. 2 radiator hose you should first loosen the clip. Disassembling the hood lock assembly requires removal of the hood lock control cable assembly from its clamps followed by bolt removal of three fasteners. Detach the No. 1 cooler cover by unfastening its two clips. The first step requires disconnecting the horn connector while taking off the upper radiator support sub-assembly by removing its five bolts. Perform the radiator assembly removal by disconnecting the cooling fan motor connector then separating the wire harness clamp and carefully unclipping the two claws while avoiding excessive strain on the cooler condenser assembly or piping. Users need to remove the two bolts from the water filler sub-assembly while disconnecting its radiator reservoir tank hose so they can separate the sub-assembly. The fanshroud must be removed after disengaging its two claws followed by removing the radiator assembly support cushions. The last step entails removing the radiator reserve tank hose grommets followed by extraction of the radiator drain cock from the assembly.

The radiator removal process starts with turning off the ignition to stop electric cooling fan activation. Disconnect the negative cable from the battery first while draining all engine coolant out. The first step requires uninstalling the front bumper cover for hatchback vehicles and the same procedure for sedans. Extract the air cleaner by disconnecting three components from the intake air flow meter connector, two components from fuel vapor feed hoses, and one component from vacuum switching valve connector and ventilation hose followed by releasing the air cleaner cap and loosening its clamp to remove the air cleaner cap and hose then take out both the air cleaner element and case. Hatchback model owners need to disengage six claws to remove the radiator support absorber upper section. Unclip the 2 fasteners of the No. 1 cooler cover before disconnecting the hood lock assembly control cable assembly and courtesy switch connector while also removing the 3 bolts. After disassembling the control cable assembly you can remove the three bolts from vehicles that do not have theft deterrence. You should disconnect the horn assembly connector before you remove the 4 bolts which allows you to take out the radiator support sub-assembly upper. Detach the radiator reservoir tank hose from the water filler following a removal of radiator hose No. 3 using the clips. Automatic transaxle models require disconnecting oil cooler outlet and inlet hoses when their clips are loosened. The removal of radiator assembly for vehicles with air conditioning starts with separating cooling fan motor connector wires before disengaging the 2 claws to complete the process. People who lack air conditioning should execute the same radiator assembly removal procedure. The service procedure requires removal of radiator hose No. 2 followed by the oil cooler outlet and inlet hoses as well as the disengagement of 2 claws to separate the fan shroud then extraction of both radiator support cushions from the radiator assembly. Repeat this step by removing both radiator reserve tank hose grommets and the radiator drain cock that are installed on the radiator assembly.

Install the No. 1 cooler cover with 2 clips.

Remove the engine under covers on both the left and right sides, then drain the engine coolant.

Connect the cooling fan motor connector and install the wire harness clamp.

Connect the oil cooler inlet and outlet hoses, and radiator hose No. 2, then install radiator hose No. 3 with 2 clips.

Engage the 2 claws to install the fan shroud.

Ensure the ignition is off before working near the electric cooling fans or radiator grille.

Install it with 4 bolts, torqued to 5.5 Nm (56 kgf-cm, 49 in-lbf), and connect the horn assembly connector.
