Toyota 56101-AE020

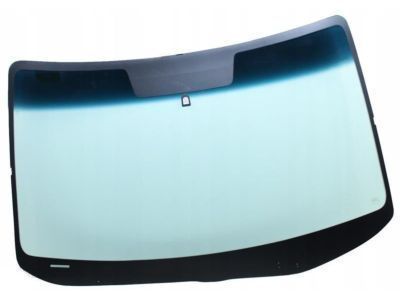

Glass, Front

First apply Primer G to the installation part of both stoppers in WINDSHIELD GLASS NO.2 then place two replacement stoppers onto the glass. Install two fresh WINDSHIELD GLASS NO.1 STOPPERS onto the vehicle body parts. Before installation apply Primer G to the adhesive portion of WINDOW GLASS ADHESIVE DAM and let it dry before placing a fresh dam around the glass through double-sided tape to spaces free of stoppers. Wipe the glass edge and contact points on the WINDSHIELD MOULDING OUTER UPPER part with the brush or sponge set to spread Primer G on these areas before the wet time of 3 minutes. Use a knife to remove any rough stripping from the vehicle surface then wipe it clean with a shop rag. Apply a suction cup to put the glass in place to check for equal bubbles along the edge. Mark reference points and take the glass off. Apply Primer M to the visible vehicle surfaces and permit it to dry before using Primer G to coat the glass edges. Load sealer gun with adhesive 08850-00801 or equal substitute and apply it to the glass surface. Hold the glass level using its reference marks while applying low pressure along the rim around the stoppers to check if the installed vehicle body meets proper clearance. Use a scraper to carefully remove any extra adhesive from the front surface after gentle pressing while waiting for the necessary operational time before vehicle use. Proceed to remove the WINDSHIELD MOULDING OUTSIDE LH, install the WINDSHIELD MOULDING OUTSIDE RH, conduct a leak test after the adhesive hardens, seal any leaks with auto glass sealer, and complete the installation of the COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY, FRONT WIPER ARMS, ROOF HEADLINING ASSEMBLY, INNER REAR VIEW MIRROR ASSEMBLY, SUN ROOF OPENING TRIM MOULDING (if applicable), ROOF CONSOLE BOX ASSEMBLY, VISOR HOLDER, ASSIST GRIP SUB-ASSEMBLY, VISOR ASSEMBLIES RH and LH, and FRONT PILLAR GARNISHES RH and LH, followed by the FRONT DOOR OPENING TRIM Weather StripS RH and LH.

Carefully cut it off with a knife, ensuring not to damage the vehicle body, and remove any remaining moulding.
