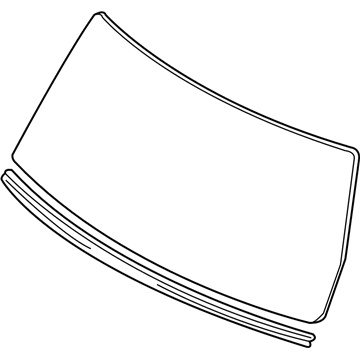

Begin installing windshield glass by using a scraper to remove damaged stoppers, adhesive, and dam from the glass and subsequently cleaning the outer edge with a non-residue solvent without touching the glass surface. Use a knife to shape the contact areas of the body until all rough adhesive is completely removed while taking all necessary precautions to protect the body structure from damage followed by cleaning with a shop rag or cloth. Position two new stoppers on the vehicle body before applying Primer G on their installation areas for a minimum waiting period of 3 minutes until discarding unused primer. The glass border and contact area receives Primer G application before the moulding gets installed onto the windshield surface after drying for 3 minutes. New dams should have Primer G applied to their installation parts before they dry for three minutes while getting positioned on the windshield glass using double-sided tape except the stopper areas. The task requires windshield glass alignment using suction cups while also checking for proper surface evenness before marking the edges. Apply Primer M to the outer surface of the vehicle body while waiting 3 minutes for it to dry and follow by using Primer G on glass edges plus contact points which need 3 minutes before drying. The sealer gun receives a cartridge nozzle cut before Toyota Genuine Windshield Glass Adhesive or equivalent material gets applied to the windshield window. Transport the windshield glass onto the body frame while matching the marks but apply minimum force to maintain a small space before using a scraper to eliminate unnecessary adhesive. Finally, engage the 6 claws to install the windshield outside lower moulding, conduct a leak test by applying water to the adhesive portions after hardening, seal any leakage with auto glass sealer, and proceed to install the roof side garnish protector, front pillar outer garnish, roof drip side finish moulding retainer, windshield outside upper moulding sub-assembly, roof headlining, room light assembly, inner rear view mirror assembly, inner rear view mirror stay holder cover, visor holder, visor assemblies, front pillar garnishes, visor sub-assemblies, assist grip assembly, assist grip plug, front door opening trim Weather Strips, roof side rail garnishes, roof side inner garnish covers, cowl side trim boards, footrest clip, front floor footrest, access door scuff plates, front door scuff plates, cowl top ventilator louvers, front fender side panels, antenna ornament, roof antenna pole sub-assembly, front wiper arm and blade assemblies, windshield wiper arm cover, and finally connect the cable to the negative battery terminal with a torque of 3.9 Nm (40 kgf-cm, 35 in-lbf).
