Make sure this part fits

Toyota 48610-60030
Upper Control Arm, Passenger Side

1998-2007 Toyota Land Cruiser 4861060030

Customer Questions & Expert Answers (9)

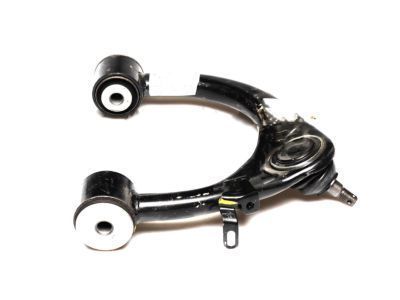

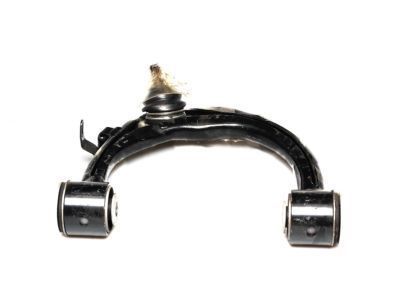

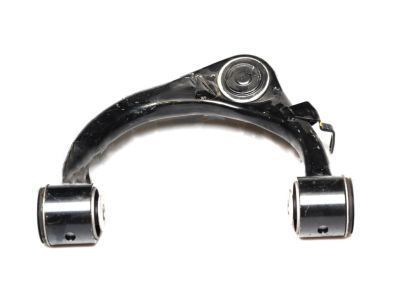

Toyota 48610-60030 Upper Control Arm, Passenger Side
Toyota 48610-60030 Upper Control Arm, Passenger Side
Toyota 48610-60030 Upper Control Arm, Passenger Side
Toyota 48610-60030 Upper Control Arm, Passenger Side
Toyota 48610-60030 Upper Control Arm, Passenger Side
Toyota 48610-60030 Upper Control Arm, Passenger Side
  • Part Description
    Arm Assembly, Suspension; Suspension Control Arm, Front Right Upper; Control Arm Assembly
  • Part Name Code
    48610
  • Position
    Passenger Side
  • Manufacturer
    Toyota
Make sure this part fits
$344.00 MSRP: $504.14
You Save: $160.14 (32%)
Ships in 1-3 Business Days
1
ADD TO CART
  • Related Parts
  • Product Specifications
  • Vehicle Fitment
  • Customer Questions & Expert Answers

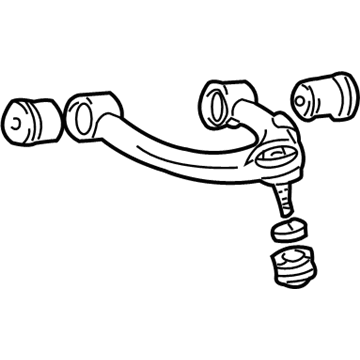

  • 48610-60030 Upper Control Arm, Passenger Side is Ref No. 7 in the diagram below

    2005 Toyota Land Cruiser Upper Control Arm, Passenger Side Diagram for 48610-60030
    The diagram listed above is for your reference. View diagram for your vehicle

    Related Parts for 48610-60030

  • Product Specifications

    BrandGenuine Toyota
    Part Name Code48610
    Manufacturer Part Number48610-60030
    Part DescriptionArm Assembly, Suspension; Suspension Control Arm, Front Right Upper; Control Arm Assembly
    Other NamesArm Assembly, Front Suspension Upper, Passenger Side; Suspension Control Arm; Control Arm
    Item Dimensions11.7 x 7.0 x 15.4 inches
    Item Weight7.30 Pounds
    PositionPassenger Side
    ConditionNew
    Fitment TypeDirect Replacement
    ManufacturerToyota
    SKU48610-60030
    WarrantyThis genuine Toyota part is guaranteed by Toyota's factory warranty.
    Shipping & ReturnShipping Policy Return Policy
    Warning: California's Proposition 65

  • Vehicle Fitment

    Year Make Model Trim Engine
    1998-2007 Toyota Land CruiserBase8 Cyl 4.7 L GAS

  • Customer Questions & Expert Answers

    Q:
    Will 48610-60030 fit my vehicle? Posted by ToyotaPartsNow Specialist
    A:
    Find out if part number 48610-60030 is the right fit for your car by Selecting Your Vehicle model.
    Posted by ToyotaPartsNow Specialist
    Q:
    What is advisable during the installation of the upper control arm for the 2001 Toyota Land Cruiser? Posted by Customer
    A:
    It is advisable to torque the nuts after stabilizing the suspension during installation.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Control Arm
    Q:
    What should be done with the used nuts during installation for the 2007 Toyota Land Cruiser? Posted by Customer
    A:
    It is important to replace the 2 used nuts with new ones during installation.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Control Arm
    Q:
    What is the first step to service the rear upper control arm for the 2006 Toyota Land Cruiser? Posted by Customer
    A:
    Begin by removing the rear wheel, ensuring a torque of 131 Nm (1,340 kgf-cm, 97 ft. lbs.).
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Control Arm
    Q:
    What should be done after installing the new bushing for the 2005 Toyota Land Cruiser? Posted by Customer
    A:
    Remove the wire and dust cover, coat the ball joint with grease from the boot kit, and install a new dust cover and wire.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Control Arm
    Q:
    What should be done during the installation of the upper control arm for the 2004 Toyota Land Cruiser? Posted by Customer
    A:
    Stabilize the suspension before torquing the nuts.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Control Arm
    Q:
    What should be done after removing the rear wheel for the 2000 Toyota Land Cruiser? Posted by Customer
    A:
    Support the rear axle housing with a jack, then disconnect the ABS speed sensor wire harness to remove the upper control arm.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Control Arm
    Q:
    What is the first step for replacing the bushings for the 2003 Toyota Land Cruiser? Posted by Customer
    A:
    Start with the No. 1 bushing by prying up the flange with a chisel and hammer, then use Special Service Tool: 09710-30021 (09710-03101), 09950-00020, 09950-00030, 09950-40011 (09957-04010) to remove it, and install a new one using Special Service Tool: 09726-36010 and a press.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Control Arm
    Q:
    What is the process for removing the lower control arm for the 2002 Toyota Land Cruiser? Posted by Customer
    A:
    Remove the 2 nuts, washers, bolts, and lower control arm, applying a torque of 150 Nm (1,530 kgf-cm, 111 ft. lbs.) during installation after stabilizing the suspension.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Control Arm
