Toyota 48630-60010
Arm Assembly, Front Suspension, Upper Driver Side

1998-2007 Toyota Land Cruiser 4863060010

Customer Questions & Expert Answers (9)

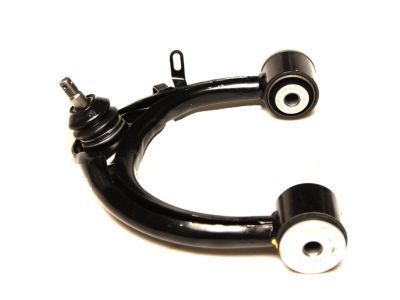

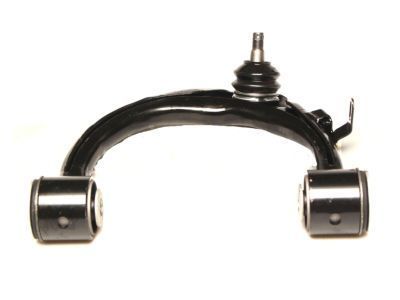

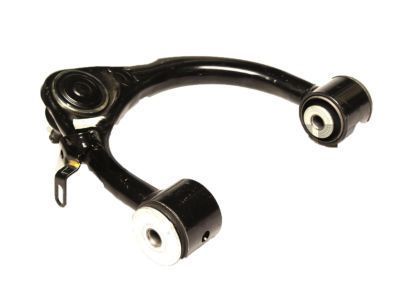

Toyota 48630-60010 Arm Assembly, Front Suspension, Upper Driver Side
Toyota 48630-60010 Arm Assembly, Front Suspension, Upper Driver Side
Toyota 48630-60010 Arm Assembly, Front Suspension, Upper Driver Side
Toyota 48630-60010 Arm Assembly, Front Suspension, Upper Driver Side
Toyota 48630-60010 Arm Assembly, Front Suspension, Upper Driver Side
Toyota 48630-60010 Arm Assembly, Front Suspension, Upper Driver Side
  • Part Description
    Arm Assembly, Suspension; Control Arm
  • Part Name Code
    48630
  • Position
    Upper Driver Side
  • Manufacturer
    Toyota
Make sure this part fits
$344.00 MSRP: $504.14
You Save: $160.14 (32%)
Ships in 1-3 Business Days
1
ADD TO CART
  • Related Parts
  • Product Specifications
  • Vehicle Fitment
  • Customer Questions & Expert Answers

  • 48630-60010 Arm Assembly, Front Suspension, Upper Driver Side is Ref No. 7 in the diagram below

    2005 Toyota Land Cruiser Arm Assembly, Front Suspension, Upper Driver Side Diagram for 48630-60010
    The diagram listed above is for your reference. View diagram for your vehicle

    Related Parts for 48630-60010

  • Product Specifications

    BrandGenuine Toyota
    Part Name Code48630
    Manufacturer Part Number48630-60010
    Part DescriptionArm Assembly, Suspension; Control Arm
    Item Dimensions12.6 x 7.0 x 15.3 inches
    Item Weight7.30 Pounds
    PositionUpper Driver Side
    ConditionNew
    Fitment TypeDirect Replacement
    ManufacturerToyota
    SKU48630-60010
    WarrantyThis genuine Toyota part is guaranteed by Toyota's factory warranty.
    Shipping & ReturnShipping Policy Return Policy
    Warning: California's Proposition 65

  • Vehicle Fitment

    Year Make Model Trim Engine
    1998-2007 Toyota Land CruiserBase8 Cyl 4.7 L GAS

  • Customer Questions & Expert Answers

    Q:
    Will 48630-60010 fit my vehicle? Posted by ToyotaPartsNow Specialist
    A:
    Find out if part number 48630-60010 is the right fit for your car by Selecting Your Vehicle model.
    Posted by ToyotaPartsNow Specialist
    Q:
    What should be removed after the bolt and heat insulator for the 2004 Toyota Land Cruiser? Posted by Customer
    A:
    Remove the 2 nuts, washers, bolts, and upper control arm, applying a torque of 150 Nm (1,530 kgf-cm, 111 ft. lbs.).
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Control Arm
    Q:
    What is the final step after removing the control arms for the 2001 Toyota Land Cruiser? Posted by Customer
    A:
    The installation process follows the reverse order of removal.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Control Arm
    Q:
    How does installation proceed for the 2007 Toyota Land Cruiser? Posted by Customer
    A:
    Installation follows the reverse order of removal.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Control Arm
    Q:
    What is the final step after installation for the 2003 Toyota Land Cruiser? Posted by Customer
    A:
    Installation is done in the reverse order of removal, and after installation, check the front wheel alignment.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Control Arm
    Q:
    What is the next step after disconnecting the rear height control sensor link for the 2006 Toyota Land Cruiser? Posted by Customer
    A:
    Disconnect the ABS speed sensor wire harness.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Control Arm
    Q:
    What is the procedure for removing the upper control arm on the right-hand side for the 2000 Toyota Land Cruiser? Posted by Customer
    A:
    Remove the bolt and heat insulator with a torque of 18 Nm (185 kgf-cm, 13 ft. lbs.), followed by the removal of the 2 nuts, washers, bolts, and upper control arm, applying a torque of 150 Nm (1,530 kgf-cm, 111 ft. lbs.).
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Control Arm
    Q:
    What should be done after removing the front wheel for the 2005 Toyota Land Cruiser? Posted by Customer
    A:
    Remove the front fender apron and disconnect the ABS speed sensor wire harness by removing the 2 bolts, applying a torque of 13 Nm (130 kgf-cm, 10 ft. lbs.).
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Control Arm
    Q:
    How should the rear axle housing be supported for the 2002 Toyota Land Cruiser? Posted by Customer
    A:
    Support the rear axle housing with a jack.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Control Arm
