Toyota 48068-35081
Lower Control Arm, Passenger Side

1996-2002 Toyota 4Runner 4806835081

Customer Questions & Expert Answers (5)

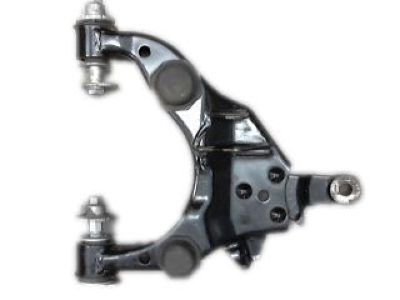

Toyota 48068-35081 Lower Control Arm, Passenger Side
Toyota 48068-35081 Lower Control Arm, Passenger Side
Toyota 48068-35081 Lower Control Arm, Passenger Side
Toyota 48068-35081 Lower Control Arm, Passenger Side
  • Part Description
    Arm Sub-Assembly, Suspension; Suspension Control Arm, Front Right Lower
  • Part Name Code
    48068
  • Position
    Passenger Side
  • Replaces
    48068-35080
  • Manufacturer
    Toyota
Make sure this part fits
$210.64 MSRP: $300.75
You Save: $90.11 (30%)
Ships in 1-3 Business Days
1
ADD TO CART
  • Related Parts
  • Product Specifications
  • Vehicle Fitment
  • Customer Questions & Expert Answers

  • 48068-35081 Lower Control Arm, Passenger Side is Ref No. 11 in the diagram below

    1999 Toyota 4Runner Lower Control Arm, Passenger Side Diagram for 48068-35081
    The diagram listed above is for your reference. View diagram for your vehicle

    Related Parts for 48068-35081

  • Product Specifications

    BrandGenuine Toyota
    Part Name Code48068
    Manufacturer Part Number48068-35081
    Part DescriptionArm Sub-Assembly, Suspension; Suspension Control Arm, Front Right Lower
    Other NamesArm Sub-Assembly, Front Suspension, Lower Passenger Side; Suspension Control Arm; Control Arm
    Item Dimensions23.1 x 22.7 x 9.2 inches
    Item Weight19.30 Pounds
    PositionPassenger Side
    ConditionNew
    Fitment TypeDirect Replacement
    Replaces48068-35080
    ManufacturerToyota
    SKU48068-35081
    WarrantyThis genuine Toyota part is guaranteed by Toyota's factory warranty.
    Shipping & ReturnShipping Policy Return Policy
    Warning: California's Proposition 65

  • Vehicle Fitment

    Year Make Model Trim Engine
    1996-2002 Toyota 4RunnerBase, Limited, SR54 Cyl 2.7 L GAS, 6 Cyl 3.4 L GAS

  • Customer Questions & Expert Answers

    Q:
    Will 48068-35081 fit my vehicle? Posted by ToyotaPartsNow Specialist
    A:
    Find out if part number 48068-35081 is the right fit for your car by Selecting Your Vehicle model.
    Posted by ToyotaPartsNow Specialist
    Q:
    How to service and repair the rear control arm on Toyota 4Runner? Posted by Customer
    A:
    The rear control arm servicing requires a jack-up of the rear axle housing followed by frame support with stands and simultaneous holding of the rear axle housing through a jack. ABS speed sensor wire harnesses from upper suspension arms need disconnecting on vehicles with this system. The process to remove the upper control arm starts by removing the nut along with its washer and bolt to release it from the frame connection but properly torquing the connection to 86 Nm (880 kgf.cm, 64 ft. lbs.) after stabilizing the suspension. Remove the nut and washer and bolt which connect the upper control arm to the rear axle housing before taking out the upper control arm and reapply 86 Nm torque upon completion of reinstallation. The removal of the lower control arm starts by disconnecting the frame-mounted nut and bolt then torques them to 145 Nm (1,480 kgf.cm, 107 ft. lbs.) during installation. After unfastening the lower control arm from the rear axle housing with a nut and washer and bolt combination, remove the part while torquing all new connections to 145 Nm (1,480 kgf.cm, 107 ft. lbs.). The replacement of lower control arm bushing requires Special Service Tools 09710-14013 (09710-00021, 09710-00061), 09950-70010 (09951-07150), a press to remove the bushing, alongside Special Service Tools 09506-35010, 09710-14013 (09710-00021) to install the new bushing using a press. The completion process of installation follows an order that reverses the sequence of uninstallation steps.
    Posted by ToyotaPartsNow Specialist
    Q:
    How do you remove the lower control arm for the 2002 Toyota 4Runner? Posted by Customer
    A:
    Take off the nut and bolt securing it to the frame, torquing to 145 Nm (1,480 kgf-cm, 107 ft. lbs.) after stabilizing the suspension.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Control Arm
    Q:
    What is the first step to service and repair the rear control arm for the 2001 Toyota 4Runner? Posted by Customer
    A:
    Begin by jacking up the rear axle housing and supporting the frame with stands while holding the rear axle housing with a jack.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Control Arm
    Q:
    How do you replace the bushing for the 2000 Toyota 4Runner? Posted by Customer
    A:
    Remove the bushing by prying up its flange with a chisel and hammer, then use Special Service Tool: 09613-26010, 09631-20060, 09950-00020 and a press to extract it. Install a new bushing using Special Service Tool: 09223-00010, 09506-35010 and a press.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Control Arm
    If you have any questions about this product, please don't hesitate to ask us. We will be happy to help you!

OEM Toyota 48068-35081, Excellent Performance and Perfect Fitment

To ensure reliability, purchase Toyota part # 48068-35081 Lower Control Arm, Passenger Side. It is sometimes referred to as Toyota Control Arm. OEM parts are unrivaled in terms of quality. They go through extensive quality control inspections and are produced in accordance with Toyota's official factory specifications. All of these remove defects and imperfections. So you can relax knowing they promise exceptional lifespan and flawless fitment.

ToyotaPartsNow.com is a leading supplier of genuine Toyota parts such as Toyota 4806835081 Lower Control Arm, Passenger Side. At ToyotaPartsNow.com, we have a wide variety of OEM Toyota parts available at competitive prices. Our comprehensive range of genuine Toyota parts come with a manufacturer's warranty for peace of mind. We also prioritize customer satisfaction, providing a hassle-free return policy and expedited delivery for all our parts. For detailed Toyota parts information, click here.
