Make sure this part fits

Toyota 48069-35110
Lower Control Arm, Driver Side

2001-2004 Toyota Tacoma 4806935110

Customer Questions & Expert Answers (7)
Toyota 48069-35110 Lower Control Arm, Driver Side
Toyota 48069-35110 Lower Control Arm, Driver Side
Toyota 48069-35110 Lower Control Arm, Driver Side
Toyota 48069-35110 Lower Control Arm, Driver Side
  • Part Description
    Arm Sub-Assembly, Suspension; Suspension Control Arm, Front Left Lower
  • Part Name Code
    48069
  • Position
    Lower Driver Side
  • Manufacturer
    Toyota
Make sure this part fits
$134.50 MSRP: $190.41
You Save: $55.91 (30%)
Ships in 1-3 Business Days
1
ADD TO CART
  • Related Parts
  • Product Specifications
  • Vehicle Fitment
  • Customer Questions & Expert Answers

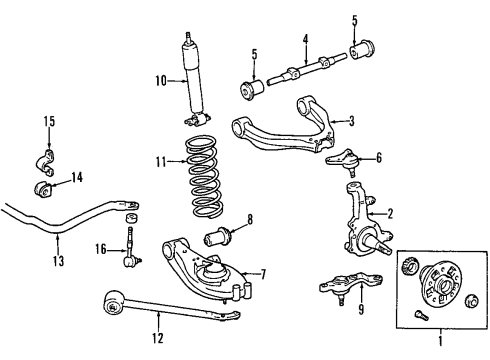

  • 48069-35110 Lower Control Arm, Driver Side is Ref No. 7 in the diagram below

    2003 Toyota Tacoma Lower Control Arm, Driver Side Diagram for 48069-35110
    The diagram listed above is for your reference. View diagram for your vehicle

    Related Parts for 48069-35110

  • Product Specifications

    BrandGenuine Toyota
    Part Name Code48069
    Manufacturer Part Number48069-35110
    Part DescriptionArm Sub-Assembly, Suspension; Suspension Control Arm, Front Left Lower
    Other NamesArm Sub-Assembly, Front Suspension, Lower Driver Side; Suspension Control Arm; Control Arm
    Item Dimensions17.6 x 12.4 x 4.7 inches
    Item Weight9.60 Pounds
    PositionLower Driver Side
    ConditionNew
    Fitment TypeDirect Replacement
    ManufacturerToyota
    SKU48069-35110
    WarrantyThis genuine Toyota part is guaranteed by Toyota's factory warranty.
    Shipping & ReturnShipping Policy Return Policy
    Warning: California's Proposition 65

  • Vehicle Fitment

    Year Make Model Trim Engine
    2001-2004 Toyota TacomaBase, Pre Runner, S-Runner4 Cyl 2.4 L GAS, 4 Cyl 2.7 L GAS, 6 Cyl 3.4 L GAS

  • Customer Questions & Expert Answers

    Q:
    Will 48069-35110 fit my vehicle? Posted by ToyotaPartsNow Specialist
    A:
    Find out if part number 48069-35110 is the right fit for your car by Selecting Your Vehicle model.
    Posted by ToyotaPartsNow Specialist
    Q:
    How do you disconnect the upper ball joint for the 2003 Toyota Tacoma? Posted by Customer
    A:
    Remove the cotter pin and loosen the nut to a torque of 105 Nm (1,100 kgf-cm, 80 ft. lbs.). If the cotter pin hole is misaligned during installation, tighten the nut further up to 60°.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Control Arm
    Q:
    What should be done after removing the lower suspension arm for the 2004 Toyota Tacoma? Posted by Customer
    A:
    Remove the Special Service Tool and coil spring, ensuring the end of the coil spring and lower suspension arm seat are in contact during installation.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Control Arm
    Q:
    What is the first step to service and repair the upper control arm on the 2001 Toyota Tacoma? Posted by Customer
    A:
    Begin by removing the shock absorber with coil spring.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Control Arm
    Q:
    What should be done for the 2002 Toyota Tacoma equipped with ABS? Posted by Customer
    A:
    Disconnect the ABS speed sensor wire harness clamp by removing the 2 bolts from the steering knuckle and upper suspension arm, ensuring a torque of 8.0 Nm (82 kgf-cm, 71 inch lbs.).
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Control Arm
    Q:
    What is the procedure for replacing the bushing for the 2001 Toyota Tacoma? Posted by Customer
    A:
    Cut off the shaded portion of the bushing to expose the edge of the tube without damaging the arm tube edge, then face the cut side downward and use Special Service Tool: 09710-30021 (09710-03071, 09710-03141) and a press to remove the bushing. Install a new bushing using Special Service Tool: 09710-30021 (09710-03101, 09710-03141) and a press, ensuring to press in from the rear side.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Control Arm
    Q:
    What is the final step in the removal process for the 2003 Toyota Tacoma? Posted by Customer
    A:
    Use Special Service Tool: 09922-10010 to remove the No. 1 and No. 2 spring bumpers, applying a torque of 23 Nm (235 kgf-cm, 17 ft. lbs.) and using a torque wrench with a fulcrum length of 345 mm (13.58 inches) during installation.
    Posted by ToyotaPartsNow Specialist
    See expert answers on similar Control Arm
    If you have any questions about this product, please don't hesitate to ask us. We will be happy to help you!

OEM Toyota 48069-35110, Excellent Performance and Perfect Fitment

To ensure reliability, purchase Toyota part # 48069-35110 Lower Control Arm, Driver Side. It is sometimes referred to as Toyota Control Arm. OEM parts are unrivaled in terms of quality. They go through extensive quality control inspections and are produced in accordance with Toyota's official factory specifications. All of these remove defects and imperfections. So you can relax knowing they promise exceptional lifespan and flawless fitment.

ToyotaPartsNow.com is a leading supplier of genuine Toyota parts such as Toyota 4806935110 Lower Control Arm, Driver Side. At ToyotaPartsNow.com, we have a wide variety of OEM Toyota parts available at competitive prices. Our comprehensive range of genuine Toyota parts come with a manufacturer's warranty for peace of mind. We also prioritize customer satisfaction, providing a hassle-free return policy and expedited delivery for all our parts. For detailed Toyota parts information, click here.
Choose ToyotaPartsNow for discounted prices, exceptional service and fast delivery
