How to install the seat heater switch for the floor shift type on Toyota Tundra?

At the beginning of seat heater switch for floor-shift type installation, first install two claws to their designated positions on the right-hand side before moving to the left-hand side. First connect the integration control and panel connectors then fasten the panel with the 4 clips. Install the center lower instrument panel finish panel and after that add the upper console panel sub-assembly and lastly position the rear upper console panel sub-assembly. The worker should place the shift lever knob sub-assembly followed by instrument cluster finish panel assembly with the lower instrument panel finish panel sub-assembly on the left-hand side of the work area. The installation of the instrument side panel needs to take place on the left-hand side. The installation process of the cowl side trim board depends on whether you have a double cab or regular cab model. Finish installation of the front door scuff plate while using the correct procedure determined by double cab or regular cab configuration.

How to remove the seat heater switch for the column shift type on Toyota Tundra?

The first step to remove the seat heater switch for column shift type vehicles includes taking off the front door scuff plate LH according to Single Cab or Double Cab specifications. One must remove the cowl side trim board on the left-hand side according to the selected cab type. You must begin by removing the instrument side panel LH then proceed with the lower instrument panel finish panel sub-assembly LH. The maintenance begins with removing the instrument cluster finish panel assembly followed by the ash receptacle light bulb broadcast and finally taking off the lower instrument cluster finish panel. The instrument panel cup holder assembly needs to be extracted at this stage. The separation of integration control and panel assembly requires the removal of 4 clips along with disconnecting their integration control to panel connectors. Use pliers to disconnect the two seat heater switch LH claws before performing the same step for the seat heater switch RH.

OEM Toyota Tundra Seat Heater Switch

Seat Heater Level Switch

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

6 Seat Heater Switches found

View related parts

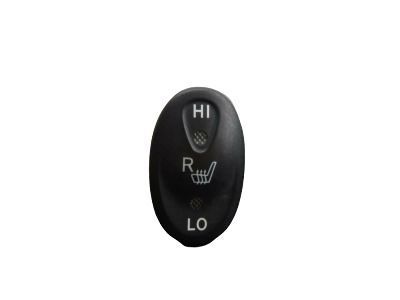

Toyota Tundra Seat Heat Switch, Passenger Side
Part Number: 84751-0C010
$98.82 MSRP: $138.70
You Save: $39.88 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Switch, Seat Heater; Seat Heater Switch, Right; Power Seat Switch; Switch; Seat Heater Switch
- Position: Passenger Side
- Replaces: 84751-34010
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2004-2006 Toyota Tundra | Base, Limited, SR5 | 6 Cyl 3.4 L GAS, 6 Cyl 4.0 L GAS, 8 Cyl 4.7 L GAS
View related parts
Toyota Tundra Seat Heat Switch, Passenger Side
Part Number: 84751-0C041
$74.64 MSRP: $104.77
You Save: $30.13 (29%)
ADD TO CART
Product Specifications
- Other Name: Switch, Seat Heater; Seat Heater Switch, Right; Power Seat Switch; Switch; Seat Heater Switch
- Position: Passenger Side
- Replaces: 84751-0C040
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2007-2013 Toyota Tundra | Base, Limited, Platinum, SR5 | 6 Cyl 4.0 L GAS, 8 Cyl 4.6 L GAS, 8 Cyl 4.7 L GAS, 8 Cyl 5.7 L FLEX, 8 Cyl 5.7 L GAS
View related parts
Toyota Tundra Seat Heat Switch, Passenger Side
Part Number: 84751-0C060
$74.64 MSRP: $104.77
You Save: $30.13 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Switch, Seat Heater; Seat Heater Switch; Power Seat Switch; Switch
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2010-2013 Toyota Tundra | Base, Limited, Platinum, SR5 | 6 Cyl 4.0 L GAS, 8 Cyl 4.6 L GAS, 8 Cyl 5.7 L FLEX, 8 Cyl 5.7 L GAS
View related parts
Toyota Tundra Seat Heat Switch, Driver Side
Part Number: 84751-0C050
$74.64 MSRP: $104.77
You Save: $30.13 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Switch, Seat Heater; Seat Heater Switch, Left; Power Seat Switch; Switch; Seat Heater Switch
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2010-2013 Toyota Tundra | Base, Limited, Platinum, SR5 | 6 Cyl 4.0 L GAS, 8 Cyl 4.6 L GAS, 8 Cyl 5.7 L FLEX, 8 Cyl 5.7 L GAS
View related parts
Toyota Tundra Seat Heat Switch, Driver Side
Part Number: 84751-0C031
$74.64 MSRP: $104.77
You Save: $30.13 (29%)
Product Specifications
- Other Name: Switch, Seat Heater; Seat Heater Switch, Left; Power Seat Switch; Switch; Seat Heater Switch
- Position: Driver Side
- Replaces: 84751-0C030
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2007-2013 Toyota Tundra | Base, Limited, Platinum, SR5 | 6 Cyl 4.0 L GAS, 8 Cyl 4.6 L GAS, 8 Cyl 4.7 L GAS, 8 Cyl 5.7 L FLEX, 8 Cyl 5.7 L GAS
View related parts
Toyota Tundra Seat Heat Switch, Driver Side
Part Number: 84751-0C020
Product Specifications
- Other Name: Switch, Seat Heater; Seat Heater Switch, Left; Power Seat Switch; Switch; Seat Heater Switch
- Position: Driver Side
- Replaces: 84751-34020
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2004-2006 Toyota Tundra | Base, Limited, SR5 | 6 Cyl 3.4 L GAS, 6 Cyl 4.0 L GAS, 8 Cyl 4.7 L GAS

Toyota Tundra Seat Heater Switch

Choose genuine Seat Heater Switch that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Seat Heater Switch for your Toyota Tundra? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota Tundra parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

Driving safety together with comfort improvements in Toyota Tundra vehicles depends on the vital Toyota Tundra Seat Heater Switch especially during situations when temperatures drop. The device allows efficient heating because it routes electrical current into seat cushions which users can select from different temperature options at high and low levels. The reliable and performance-driven Seat Heater Switch from Toyota Tundra maintains a trusted position in multiple Tundra models which delivers warm comfort in extreme winter environments. Implementing illuminated buttons in certain versions gives the Seat Heater Switch a dual purpose of delivering functionality within a contemporary interior design for the Tundra. The model benefits tremendously from this functionality which enhances both safety effectiveness and driving performance due to its important part in its overall features. The Seat Heater Switch functions with all Toyota automobile models across both first and second edition generations because of its flexible compatibility. Many years of performances awards along with design recognition have established the Toyota car as a reliable vehicle. The the automaker model Seat Heater Switch offers competitive motorists an essential tool which combines comfort convenience with efficiency through user-oriented features.

Toyota Tundra Seat Heater Switch Parts and Q&A

Seat Heat Switch, Driver Side
84751-0C031
Q: How to install the seat heater switch for the floor shift type on Toyota Tundra?
A:
At the beginning of seat heater switch for floor-shift type installation, first install two claws to their designated positions on the right-hand side before moving to the left-hand side. First connect the integration control and panel connectors then fasten the panel with the 4 clips. Install the center lower instrument panel finish panel and after that add the upper console panel sub-assembly and lastly position the rear upper console panel sub-assembly. The worker should place the shift lever knob sub-assembly followed by instrument cluster finish panel assembly with the lower instrument panel finish panel sub-assembly on the left-hand side of the work area. The installation of the instrument side panel needs to take place on the left-hand side. The installation process of the cowl side trim board depends on whether you have a double cab or regular cab model. Finish installation of the front door scuff plate while using the correct procedure determined by double cab or regular cab configuration.
Seat Heat Switch, Passenger Side
84751-0C041
Q: How to remove the seat heater switch for the column shift type on Toyota Tundra?
A:
The first step to remove the seat heater switch for column shift type vehicles includes taking off the front door scuff plate LH according to Single Cab or Double Cab specifications. One must remove the cowl side trim board on the left-hand side according to the selected cab type. You must begin by removing the instrument side panel LH then proceed with the lower instrument panel finish panel sub-assembly LH. The maintenance begins with removing the instrument cluster finish panel assembly followed by the ash receptacle light bulb broadcast and finally taking off the lower instrument cluster finish panel. The instrument panel cup holder assembly needs to be extracted at this stage. The separation of integration control and panel assembly requires the removal of 4 clips along with disconnecting their integration control to panel connectors. Use pliers to disconnect the two seat heater switch LH claws before performing the same step for the seat heater switch RH.
