OEM Toyota Sequoia Transmission Oil Cooler
Trans Oil Cooler- Select Vehicle by Model
- Select Vehicle by VIN
Select Vehicle by Model
orMake
Model
Year
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).
7 Transmission Oil Coolers found
Toyota Sequoia Transmission Cooler Part Number: 33490-34010
$387.02 MSRP: $567.18You Save: $180.16 (32%)Ships in 1-2 Business Days

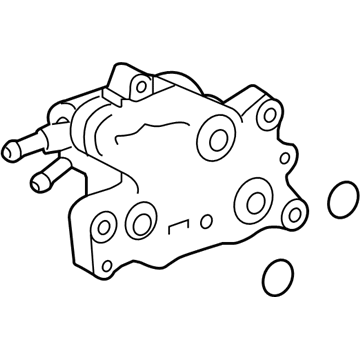

Toyota Sequoia Transmission Cooler Part Number: 32970-34030
$220.76 MSRP: $315.19You Save: $94.43 (30%)Ships in 1-2 Business Days
Toyota Sequoia Cooler Assembly, Transmission Oil Part Number: 33493-34030
$307.08 MSRP: $438.44You Save: $131.36 (30%)Ships in 1-2 Business Days

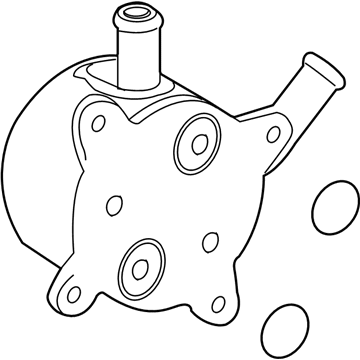

Toyota Sequoia Transmission Cooler Part Number: 33490-34020
$345.87 MSRP: $493.82You Save: $147.95 (30%)

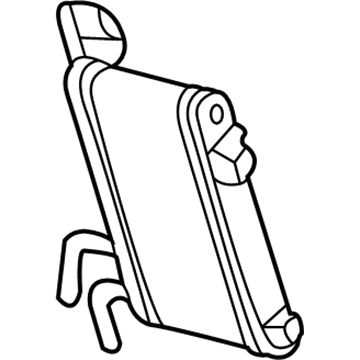

Toyota Sequoia Transmission Cooler Part Number: 32910-34020
$483.04 MSRP: $707.91You Save: $224.87 (32%)Ships in 1-3 Business Days

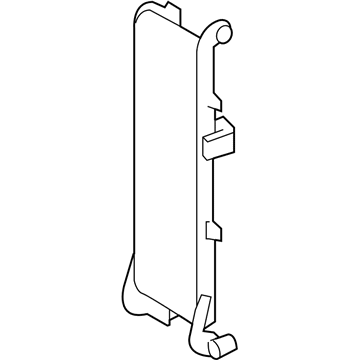

Toyota Sequoia Transmission Cooler Part Number: 32910-0C010
$597.00 MSRP: $874.91You Save: $277.91 (32%)Ships in 1-3 Business Days

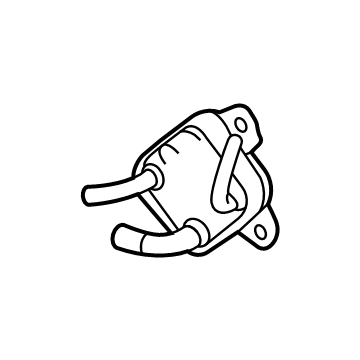

Toyota Sequoia Transmission Cooler Part Number: 32910-0C020
$298.11 MSRP: $425.64You Save: $127.53 (30%)Ships in 1-3 Business Days
Toyota Sequoia Transmission Oil Cooler
Choose genuine Transmission Oil Cooler that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Transmission Oil Cooler for your Toyota Sequoia? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota Sequoia parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.
Toyota Sequoia Transmission Oil Cooler assists in maintaining the temperature of transmission fluid even when it is under stress in the process of driving. This Transmission Oil Cooler works as an oil-to-water heat exchanger in the Toyota SUV where the oil is rapidly cooled down to normal temperature. The excess heat is carried off to the engine coolant to maintain the viscosity within the intended range. This Transmission Oil Cooler is particularly important under circumstances when a Sequoia tows heavy loads, climbs long grades, or operates in hot weather, which may cause oil to be pushed toward breakdown in case of a lack of control over the heat. The Transmission Oil Cooler helps maintain a constant temperature of the oil to ensure that all bearings, the underside of the pistons, and other moving components that generate more heat are lubricated evenly during stress. In the Toyota Sequoia powertrain, the design is based on the flow of the coolant on the water side of the exchanger. Appropriate maintenance of the coolant ensures that the passage is not blocked to maintain constant heat transfer. In situations where corrosion or debris restricts the flow, the Sequoia Transmission Oil Cooler may lose its efficiency, and oil and coolant may mix through leaks, lowering the level of protection until the Toyota system is restored.
Toyota Sequoia Transmission Oil Cooler Parts and Q&A
- Q: How to remove the A750E automatic transmission oil cooler on Toyota Sequoia?A:To remove the A750e Automatic Transmission / Transaxle oil cooler, first drain the engine coolant. Next, remove the front exhaust pipe assembly. Then, take off the hose heat protector by removing the bolt. Disconnect the water by-pass pipe assembly by removing the bolt and disconnecting the 2 water by-pass hoses from the transmission oil cooler, ensuring to catch any coolant that flows out. For the transmission oil cooler assembly without a trailer towing system, disconnect the 2 transmission oil cooler hoses, remove the 2 bolts, and take out the transmission oil cooler along with the transmission oil cooler spacer. Separate the transmission oil cooler from the transmission oil cooler spacer by removing the 3 bolts and then take out the 2 O-rings. For the assembly with a trailer towing system, disconnect the 2 No. 2 transmission oil cooler hoses from the transmission oil thermostat, then disconnect the 2 transmission oil cooler hoses. Remove the 2 bolts to take out the transmission oil cooler with the transmission oil thermostat, then separate the oil cooler from the transmission oil thermostat by removing the 3 bolts and finally take out the 2 O-rings.
- Q: How to install the A750E air-cooled automatic transmission oil cooler on Toyota Sequoia?A:To install the A750E automatic transmission air-cooled oil cooler, first, install the 2 No. 1 transmission oil cooler hoses that come with the 2 clips. Subsequently, by way of the two clips, an attachment is made between the No. 2 oil cooler tube sub-assembly and the two No. 1 transmission oil cooler hoses. Subsequently, the bolt is torqued to 4.9 Nm (50 kgf-cm, 43 in-lbf). Install oil cooler air ducts No. 1 and 2 using 4 bolts with a torque specification of 5.0 Nm (51 kgf-cm, 44 in-lbf). Utilize two clips to fasten radiator support to frame seal RH. Install the oil cooler support bracket on the oil cooler assembly with 2 bolts, torqued to 12 Nm (122 kgf-cm, 9 ft-lbf). Temporarily place the air-cooled oil cooler assembly on the radiator support, and install it with 3 bolts, torqued 14 Nm (143 kgf-cm, 10 ft-lbf), making sure the claw of the oil cooler support bracket is attached. The two bolts are also torqued to 14 Nm (143 kgf-cm, 10 ft-lbf) on the oil cooler tube installation. Install inlet No.1 and outlet No.1 oil cooler hoses with 4 clips with the pinching part of each clip facing the right direction and paint part of each hose facing outside, pass the 2 hoses into no.1 flexible hose clamp and close. The two transmission oil cooler hoses are to be fitted with 4 clips. Ensure the pinching part of each clip is regularly oriented. Lastly, the front bumper assembly goes on and the automatic transmission fluid is adjusted and checked for any leaks.
