How to remove the water pump on Toyota RAV4?

Starting the replacement of the water pump requires firstDisconnecting the cable from the negative terminal of the battery while waiting for 90 seconds to allow the SRS system to become disabled. Move on to the first stage by taking out both the No. 1 engine cover sub-assembly and radiator support opening cover while using clips removers to extract all 9 clips. The technician needs to uninstall the No. 1 engine under cover before draining the engine coolant from the system. To begin the water pump removal process disconnect the No. 1 and No. 2 water by-pass hoses from the radiator reservoir through removing its 2 securing bolts. Afterward the rear engine under cover RH must be removed along with the radiator reservoir. The next step entails removing three components: fan and generator V belt and generator assembly. The V-ribbed belt tensioner assembly removal requires the bolt to be detached. Finish the procedure by letting the clamp detach from the wire harness bracket then removing its supporting bolt and wire harness bracket. This enables removal of the water pump assembly and its gasket with the 7 assembly bolts.

How to install the water pump assembly on Toyota RAV4?

As a first step for water pump assembly installation onto 2AZ-FE cooling system start by cleaning the contact surfaces from previous packing material before extending a continuous line of Toyota Genuine Seal Packing Black or Three Bond 1207B or equivalent to a standard 2.2 to 2.5 mm (0.09 to 0.10 in.) diameter. Set assembly parts within three minutes after packing application. The parts need to rest on their seats not later than three minutes after placement of new seal packing or the process requires removal. Position the water pump along with its clamp bracket by using 4 bolts and 2 nuts which require 9.0 Nm (92 kgf-cm, 80 in-lbf) tightening torque. The crankshaft position sensor wire installation begins with attaching it to the clamp bracket followed by connecting the clamp of the crankshaft position sensor to the water pump. Special Service Tools 09960-10010 09962-01000 09963-00700 should be used to install the water pump pulley through four bolts with a torque setting at 26 Nm (265 kgf-cm, 19 ft-lbf). Connector the generator assembly while also installing the fan with the generator V belt together with the front suspension member reinforcement RH. Safely attach the cable to the negative battery terminal while adding engine coolant for leak inspection. To finish the task install the radiator support opening cover with the front fender apron RH along with the No. 1 engine under cover.

OEM Toyota RAV4 Water Pump

H2O Pump

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

11 Water Pumps found

View related parts

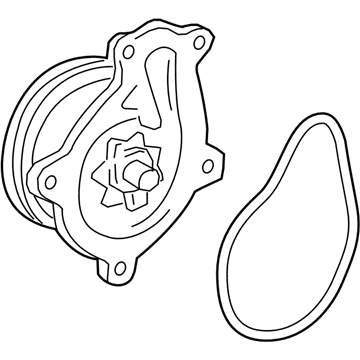

Toyota RAV4 Water Pump
Part Number: 16110-79026-83
$59.37 MSRP: $83.51
You Save: $24.14 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Water Pump Assembly; Engine Water Pump
- Replaces: 16110-09010, 16110-79026
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1996-2000 Toyota RAV4 | Base | 4 Cyl 2.0 L GAS
View related parts

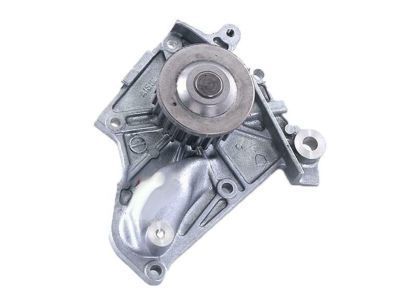

Toyota RAV4 Water Pump
Part Number: 16100-79185-83
$78.38 MSRP: $110.24
You Save: $31.86 (29%)
ADD TO CART
Product Specifications
- Other Name: Water Pump Assembly; Engine Water Pump Assembly; Engine Water Pump
- Replaces: 16100-09040, 16100-79186, 16100-09041, 16100-79075, 16100-79075-84, 16100-79185, 16100-79075-77
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1996-2000 Toyota RAV4 | Base | 4 Cyl 2.0 L GAS, BATTERY EV (EV/BEV)
View related parts
Toyota RAV4 Water Pump
Part Number: 16100-09442
$143.69 MSRP: $203.41
You Save: $59.72 (30%)
ADD TO CART
Product Specifications
- Other Name: Pump Assembly, Water; Engine Water Pump; Water Pump Assembly; Pump Assembly, Engine Water
- Manufacturer Note: (L)
- Replaces: 16100-39456, 16100-09440, 16100-09441, 16100-39455
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2006-2012 Toyota RAV4 | Base, Limited, Sport | 6 Cyl 3.5 L GAS
View related parts
Toyota RAV4 Water Pump
Part Number: 16100-28041
$109.60 MSRP: $153.85
You Save: $44.25 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pump Assembly, Water; Engine Water Pump; Water Pump Assembly; Pump Assembly, Engine Water
- Replaces: 16100-28040
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2008 Toyota RAV4 | Base, L, Limited, Sport | 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L GAS, BATTERY EV (EV/BEV)
View related parts
Toyota RAV4 Water Pump
Part Number: 16100-09515
$115.17 MSRP: $161.66
You Save: $46.49 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pump Assembly, Water; Engine Water Pump; Water Pump Assembly; Pump Assembly, Engine Water
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2009-2018 Toyota RAV4 | Adventure, Base, Hybrid Limited, Hybrid SE, Hybrid XLE, LE, Limited, Platinum, SE, Sport, XLE | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS
View related parts
Toyota RAV4 Inverter Water Pump Assembly(W/Motor)
Part Number: G9040-48010
$231.65 MSRP: $330.74
You Save: $99.09 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pump Assembly, Water W/M; Pump Assembly, EV Water With Motor; Engine Water Pump
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2016-2018 Toyota RAV4 | Hybrid Limited, Hybrid SE, Hybrid XLE | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV)
View related parts
Toyota RAV4 Water Pump
Part Number: G9020-48050
$171.34 MSRP: $242.56
You Save: $71.22 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: PUMP ASSY, WATER W/M
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2022 Toyota RAV4 | Adventure, Hybrid LE, Hybrid Limited, Hybrid SE, Hybrid XLE, Hybrid XLE Premium, Hybrid XSE, LE, Limited, TRD Off-Road, XLE, XLE Premium | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS
View related parts
Toyota RAV4 Water Pump
Part Number: G9040-33030
$330.65 MSRP: $472.10
You Save: $141.45 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pump Assembly, Water W/M; Drive Motor Inverter Cooler; Engine Auxiliary; Electric; Engine Water Pump; Auxiliary Pump; Pump Assembly; Inverter Water Pump Assembly(W/Motor); Pump Assembly, Heater Water W/Motor
- Replaces: G9040-33040
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2016-2018 Toyota RAV4 | Hybrid Limited, Hybrid SE, Hybrid XLE | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV)
View related parts
Toyota RAV4 Water Pump
Part Number: 16100-39575
$100.59 MSRP: $141.20
You Save: $40.61 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pump Assembly, Water; Engine Water Pump; Pump Assembly, Engine Water
- Manufacturer Note: *347,*265 OR *524
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2016-2018 Toyota RAV4 | Hybrid Limited, Hybrid SE, Hybrid XLE | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV)
View related parts
Toyota RAV4 Inverter Water Pump Assembly(W/Motor)
Part Number: G9040-48050
$463.56 MSRP: $679.35
You Save: $215.79 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pump Assembly, Water W/M
- Manufacturer Note: MARK=T
- Replaced by: G9040-0E060
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2022-2023 Toyota RAV4 | Hybrid LE, Hybrid Limited, Hybrid SE, Hybrid XLE, Hybrid XLE Premium, Hybrid XSE | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV)
View related parts
Toyota RAV4 Water Pump
Part Number: G9040-42010
$485.10 MSRP: $710.92
You Save: $225.82 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pump Assembly, Water W/M; Drive Motor Inverter Cooler Water Pump; Auxiliary Pump; Inverter Water Pump Assembly(W/Motor)
- Manufacturer Note: MARK=G
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2019-2022 Toyota RAV4 | Adventure, Hybrid LE, Hybrid Limited, Hybrid SE, Hybrid XLE, Hybrid XLE Premium, Hybrid XSE, LE, Limited, TRD Off-Road, XLE, XLE Premium | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L GAS

Toyota RAV4 Water Pump

Choose genuine Water Pump that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Water Pump for your Toyota RAV4? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota RAV4 parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.

The Water Pump in Toyota RAV4 cars is an important one that drives the coolant from the radiator section to the engine compartment thus allowing the coolant to interfuse the heat created during the combustion process. Traditional RAV4 Water Pump design mostly employs a belt from the crankshaft to turn the water pump, although the latest models might incorporate electric water pumps. These pumps are generally manufactured using aluminum castings and consist of shaft with bearing, pulley for belt drive and an impeller to help transfer the coolant. Some signs that your vehicle may have a defective Water Pump are dripping of the coolant, a squealing sound from the worn shaft bearings and excessively high temperature of the vehicle's engine. High-Performance Water Pump kits are designed to be used with high-performance engines; they move more coolant per revolution and draw less power than stock pumps. There are also Electric Water Pumps with advantages like coolant circulation which is not dependent on the RMP of the engine, and the capability to run after the engine has been shut down for cooling.

Toyota RAV4 Water Pump Parts and Q&A

Water Pump
16100-09442
Q: How to remove the water pump on Toyota RAV4?
A:
Starting the replacement of the water pump requires firstDisconnecting the cable from the negative terminal of the battery while waiting for 90 seconds to allow the SRS system to become disabled. Move on to the first stage by taking out both the No. 1 engine cover sub-assembly and radiator support opening cover while using clips removers to extract all 9 clips. The technician needs to uninstall the No. 1 engine under cover before draining the engine coolant from the system. To begin the water pump removal process disconnect the No. 1 and No. 2 water by-pass hoses from the radiator reservoir through removing its 2 securing bolts. Afterward the rear engine under cover RH must be removed along with the radiator reservoir. The next step entails removing three components: fan and generator V belt and generator assembly. The V-ribbed belt tensioner assembly removal requires the bolt to be detached. Finish the procedure by letting the clamp detach from the wire harness bracket then removing its supporting bolt and wire harness bracket. This enables removal of the water pump assembly and its gasket with the 7 assembly bolts.
Water Pump
16100-28041
Q: How to install the water pump assembly on Toyota RAV4?
A:
As a first step for water pump assembly installation onto 2AZ-FE cooling system start by cleaning the contact surfaces from previous packing material before extending a continuous line of Toyota Genuine Seal Packing Black or Three Bond 1207B or equivalent to a standard 2.2 to 2.5 mm (0.09 to 0.10 in.) diameter. Set assembly parts within three minutes after packing application. The parts need to rest on their seats not later than three minutes after placement of new seal packing or the process requires removal. Position the water pump along with its clamp bracket by using 4 bolts and 2 nuts which require 9.0 Nm (92 kgf-cm, 80 in-lbf) tightening torque. The Crankshaft Position Sensor wire installation begins with attaching it to the clamp bracket followed by connecting the clamp of the crankshaft position sensor to the water pump. Special Service Tools 09960-10010 09962-01000 09963-00700 should be used to install the water pump pulley through four bolts with a torque setting at 26 Nm (265 kgf-cm, 19 ft-lbf). Connector the generator assembly while also installing the fan with the generator V belt together with the front suspension member reinforcement RH. Safely attach the cable to the negative battery terminal while adding engine coolant for leak inspection. To finish the task install the radiator support opening cover with the front fender apron RH along with the No. 1 engine under cover.
