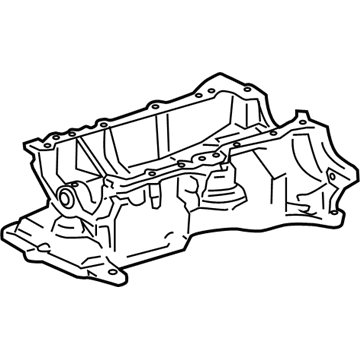

• Oil Pan, Lower
  12102-21010
  Q: How to remove and install the oil pan assembly on Toyota Prius?

  A: Use a 12 mm socket hexagon wrench to remove the Oil Filter union as your first step for removing the oil pan assembly. The first step requires draining engine oil by removing the oil pan drain plug combined with gasket before removing the 9 bolts and 2 nuts. The blade of Special Service Tool: 09032-00100 needs insertion between the oil pan and oil pan No.2 to cut off the applied sealer before extracting oil pan No.2 without harming either oil pan. The oil strainer sub-assembly can be removed by first removing its bolt alongside two nuts before taking out the oil strainer and gasket. Before removing the oil pan sub-assembly begin by taking out 13 bolts then peel the pan away from the cylinder block by using a screwdriver tipped with tape while being cautious to avoid forceful prying. First remove the 2 O-rings from the cylinder block and then install the Torx socket wrench E5 to eliminate the 4 stud bolts. You need a Torx socket wrench E5 to install the 4 stud bolts that should be tightened to 5.0 Nm (51 kgf-cm, 44 inch lbs.). The installation process must have a continuous bead seal packing layer with a diameter ranging from 2.0 to 3.0 mm (0.079 to 0.118 inch). Use Part No. 08826-00080 seal packing or equivalent materials when applying it to contact surfaces. Keep the oil pan installation time less than 3 minutes and bolt tightening should occur within 15 minutes. Additionally, avoid exposing the seal packing to engine oil for two hours after installation. Two fresh O-rings designed for the cylinder block must go under installation but need to remain both clean and free from jam when inserting the oil pan. Begin by loosely tightening the 13 bolts of specified order before applying torque to 24 Nm (245 kgf-cm, 18 ft.lbs) and recording bolt measurements as Bolt A is 46 mm (1.81 inch) while Bolt B extends to 85 mm (3.35 inch) and Bolt C reaches 140.7 mm (5.54 inch). To install an engine rear oil seal use multipurpose grease No. 2 on the new oil seal lip before tapping it into contact with cylinder block edge using Special Service Tool: 09223-56010 while keeping the crankshaft free from excess grease. The oil strainer and new gasket must be installed with the bolt and 2 nuts then tightened to 11 Nm (112 kgf-cm, 8.1 ft. lbs.). The installation of the second oil pan demands continuous application of seal packing (Diameter 2.5 to 3.5 mm (0.0984 to 0.1378 inch)) using Seal packing: Part No. 08826-00080 or equivalent on the contact surface followed by a three-minute installation period and bolt tension within 15 minutes. Two-hour exposure to engine oil needs to be avoided. Utilize a 9.0 Nm torque for tightening the 9 bolts and 2 nuts of oil pan No. 2 before applying a new gasket and installing oil pan drain plug with a 38 Nm torque. A 12 mm socket hexagon wrench helps you install the oil filter union which requires a torque of 30 Nm (306 kgf-cm, 22 ft. lbs.). Then clean the oil filter installation surface before applying engine oil to the O-ring of the new filter. Manually install the O-ring until it touches the seat, finish by turning the filter an additional 3/4 turn with Service Tool: 09228-06501.
