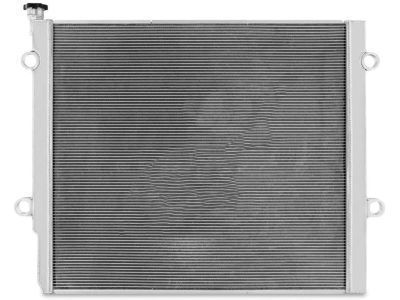

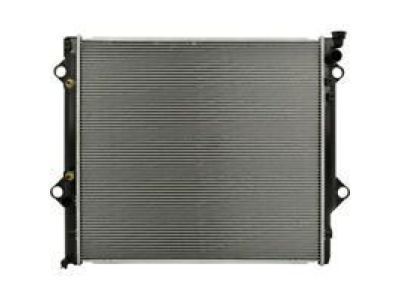

OEM Toyota FJ Cruiser Radiator

Toyota FJ Cruiser Radiator Parts and Q&A

• Radiator Assembly
  16400-31465
  Q: How to remove and replace the radiator on Toyota FJ Cruiser?

  A:

  As the first step toward radiator removal you must disconnect the cable from the battery terminal that is negative. Commence by taking out the V-bank cover then proceed with the No. 1 engine under cover sub-assembly detachment. Unscrew the radiator support seal upper from its places by disconnecting 7 clips. Then drain engine coolant. Next disconnect the hose from the radiator before proceeding with fan pulley nut loosening then extracting the fan and generator V belt. Begin by removing 4 nuts holding the fan assembly with fluid coupling next to which you detach the reserve tank bolt and 2 fan shroud bolts before taking off the fan pulley. First remove the radiator grille and then detach the 2 radiator hoses together with the 2 oil cooler hoses when using an automatic transmission. End your work by removing the radiator assembly together with the No. 1 radiator hose, No. 2 radiator hose and inlet oil cooler hose that supplies the automatic transmission.
• Radiator Assembly
  16400-75454
  Q: How to install the radiator and its components on Toyota FJ Cruiser?

  A:

  The radiator installation process starts with automatic transmission inlet oil cooler hose attachment followed by the installation of No.1 radiator hose and No.2 hose. Position the radiator assembly and use 4 bolts to fasten it before torquing them to 21 Nm (214 kgf-cm, 44 in-lbf). The automatic transmission requires the attachment of two oil cooler hoses followed by installation of the two radiator hoses. After installation of the radiator grille you should place the fan shroud but only fasten it to the fluid coupling assembly and fan with 4 nuts. The installation of the fan and generator V belt requires fastening the fan pulley using four nuts which need torquing at 21 Nm (214 kgf-cm, 44 in-lbf). The installation requires securing the fan shroud with its 2 bolts while torquing each bolt to 5.0 Nm (51 kgf-cm, 44 in-lbf). Fasten the reserve tank bolt at the same torque value while attaching the clamped oil cooler hoses to the reserve tank of the radiator. Span the 7 clips to attach the radiator support seal upper and use a 3.9 Nm torque (40 kgf-cm, 35 in-lbf) for the cable connection to the negative battery terminal. Dosage of engine coolant should follow leak inspection. Afterward install the No. 1 engine under cover sub-assembly together with V-bank cover.
