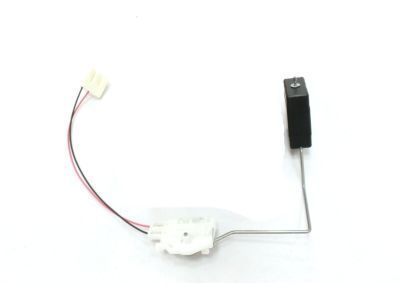

OEM Toyota FJ Cruiser Fuel Level Sensor

Toyota FJ Cruiser Fuel Level Sensor Parts Questions & Experts Answers

• Fuel Gauge Sending Unit
  83320-35640
  Q: How to install the Fuel Level Sensor assembly on Toyota FJ Cruiser?

  A: The first operation involves attaching the fuel level sensor to the fuel suction assembly with both pump and gauge tube present before finally connecting the fuel level sensor connector. The fuel level sensor assembly installation starts with the fuel suction with pump and gauge tube assembly then continues with the fuel tank main tube alongside the fuel tank return tube assembly. Start the installation process with the fuel tank assembly before attaching the fuel tank vent hose and uniting the fuel tank main tube with the fuel tank return tube. To proceed install the fuel tank breather tube subsystem and join it with the fuel tank to filler pipe hose. The No. 1 fuel tank protector sub-assembly must be installed as the first step followed by the addition of the rear floor service hole cover. The installation process moves from the rear seat cushion assembly LH toward the rear door scuff plate LH followed by installation of the front door scuff plate LH. The end of the cable requires a final connection to the negative battery terminal using 3.9 Nm of torque (40 kgf-cm or 35 in-lbf) before checking for fuel leaks.
