How do you remove and install the front Air Bag sensors on Toyota Echo?

The procedure to change front Air Bag sensors begins with turning off the ignition key to prevent DTC recording. The use of new SRS components is essential so do not reuse sensors that participated in an accident or attempt to fix these components. The first step requires removing the left-hand side bolt and air cleaner inlet followed by disconnecting the connector when the sensor assembly is placed before removing the two bolts retaining the front Air Bag sensor LH. The installation of the right-hand side sensor requires disconnecting the connector which remains with the sensor assembly followed by removing the two bolts that secure the front Air Bag sensor RH. Connect the sensor connector after complete installation while torquing it to reach 20 Nm (205 kg.cm, 15 ft.lb). The sensor needs replacement with a fresh unit unless it remains undamaged after a drop or displays no defects. An electrical check mechanism embedded in the front sensor requires strict locking before you can join the connector to stop diagnostic system from generating malfunction codes. The front Air Bag sensor installation requires placing the sensor arrow toward the vehicle front then using two bolts for the front Air Bag sensor LH before connecting its connector and reinstalling the air cleaner inlet with a bolt. Place the front Air Bag sensor RH by tightening its two bolts before connecting the connector.

OEM Toyota Echo Air Bag Sensor

Air Bag Impact Sensor

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

7 Air Bag Sensors found

View related parts

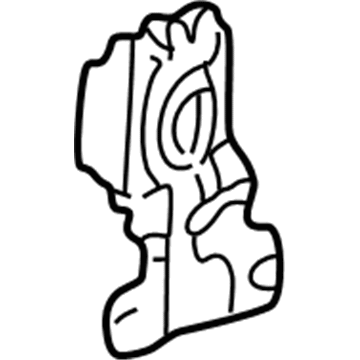

Toyota Echo Air Bag Sensor, Front Driver Side
Part Number: 89174-59085
$99.97 MSRP: $120.53
You Save: $20.56 (18%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor, Air Bag, Front; Air Bag Impact Sensor, Front Left; Front Sensor; Sensor, Air Bag, Front Driver Side
- Position: Front Driver Side
- Replaces: 89174-59045
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2000-2005 Toyota Echo | Base | 4 Cyl 1.5 L GAS
View related parts

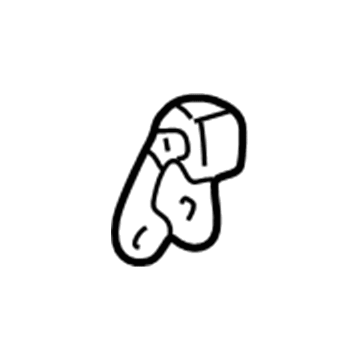

Toyota Echo Air Bag Sensor, Front Passenger Side
Part Number: 89173-59145
$97.25 MSRP: $117.25
You Save: $20.00 (18%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor, Air Bag, Front; Air Bag Impact Sensor, Front Right; Front Sensor; Sensor, Air Bag, Front Passenger Side
- Position: Front Passenger Side
- Replaces: 89173-59085
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2000-2005 Toyota Echo | Base | 4 Cyl 1.5 L GAS
View related parts

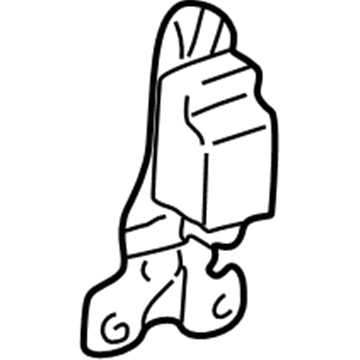

Toyota Echo Side Impact Sensor, Passenger Side
Part Number: 89860-0W030
$227.47 MSRP: $278.96
You Save: $51.49 (19%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Assembly, Side Air Bag; Air Bag Impact Sensor, Right; Air Bag Sensor; Side Sensor; Sensor Assembly, Side Air Bag, Passenger Side
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2005 Toyota Echo | Base | 4 Cyl 1.5 L GAS
View related parts

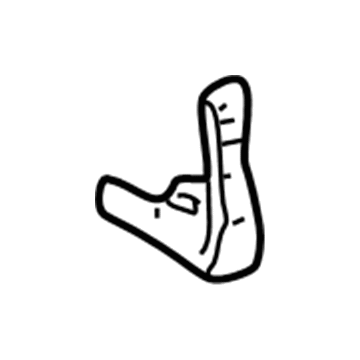

Toyota Echo Side Impact Sensor, Driver Side
Part Number: 89830-0W020
$227.47 MSRP: $278.96
You Save: $51.49 (19%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Assembly, Side Air Bag; Air Bag Impact Sensor, Left; Air Bag Sensor; Side Sensor; Sensor Assembly, Side Air Bag, Driver Side
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2005 Toyota Echo | Base | 4 Cyl 1.5 L GAS
View related parts
Toyota Echo Side Impact Sensor, Driver Side
Part Number: 89830-0W010
$227.47 MSRP: $278.96
You Save: $51.49 (19%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Assembly, Side Air Bag; Air Bag Impact Sensor, Left; Air Bag Sensor; Side Sensor; Sensor Assembly, Side Air Bag, Driver Side
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2005 Toyota Echo | Base | 4 Cyl 1.5 L GAS
View related parts
Toyota Echo Side Impact Sensor, Passenger Side
Part Number: 89860-0W040
Product Specifications
- Other Name: Sensor Assembly, Side Air Bag; Air Bag Impact Sensor, Right; Air Bag Sensor; Side Sensor; Sensor Assembly, Side Air Bag, Passenger Side
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2005 Toyota Echo | Base | 4 Cyl 1.5 L GAS
View related parts
Toyota Echo Side Impact Sensor, Driver Side
Part Number: 89835-52010
Product Specifications
- Other Name: Sensor, Door Side Air Bag; Air Bag Impact Sensor, Left; Air Bag Sensor; Side Sensor; Sensor, Door Side Air Bag, Driver Side
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2005 Toyota Echo | Base | 4 Cyl 1.5 L GAS

Toyota Echo Air Bag Sensor

If you're thinking about purchasing OEM parts for your Toyota Echo, our website is your one-stop destination. We stock an extensive selection of genuine Toyota Echo Air Bag Sensor at pocket-friendly prices. Plus, we guarantee a swift delivery and a hassle-free return policy for your convenience.

Toyota Echo Air Bag Sensor Parts Questions & Experts Answers

Air Bag Sensor, Front Passenger Side
89173-59145
Q: How do you remove and install the front Air Bag sensors on Toyota Echo?
A: The procedure to change front Air Bag sensors begins with turning off the ignition key to prevent DTC recording. The use of new SRS components is essential so do not reuse sensors that participated in an accident or attempt to fix these components. The first step requires removing the left-hand side bolt and air cleaner inlet followed by disconnecting the connector when the sensor assembly is placed before removing the two bolts retaining the front Air Bag sensor LH. The installation of the right-hand side sensor requires disconnecting the connector which remains with the sensor assembly followed by removing the two bolts that secure the front Air Bag sensor RH. Connect the sensor connector after complete installation while torquing it to reach 20 Nm (205 kg.cm, 15 ft.lb). The sensor needs replacement with a fresh unit unless it remains undamaged after a drop or displays no defects. An electrical check mechanism embedded in the front sensor requires strict locking before you can join the connector to stop diagnostic system from generating malfunction codes. The front Air Bag sensor installation requires placing the sensor arrow toward the vehicle front then using two bolts for the front Air Bag sensor LH before connecting its connector and reinstalling the air cleaner inlet with a bolt. Place the front Air Bag sensor RH by tightening its two bolts before connecting the connector.
