OEM Toyota Avalon Shift Cable
Transmission Shift Cable- Select Vehicle by Model
- Select Vehicle by VIN
Select Vehicle by Model
orMake
Model
Year
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).
10 Shift Cables found

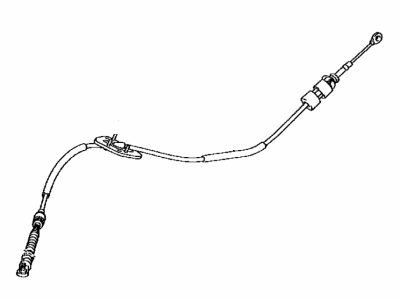

Toyota Avalon Shift Control Cable
Part Number: 33820-AC020$243.47 MSRP: $347.63You Save: $104.16 (30%)Ships in 1-3 Business DaysToyota Avalon Shift Control Cable
Part Number: 33820-07100$181.03 MSRP: $258.47You Save: $77.44 (30%)Ships in 1-3 Business Days

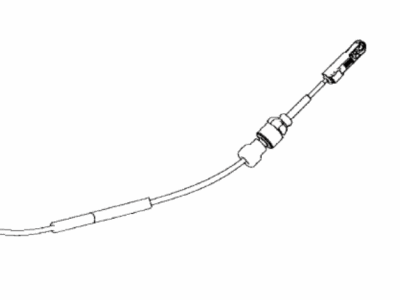

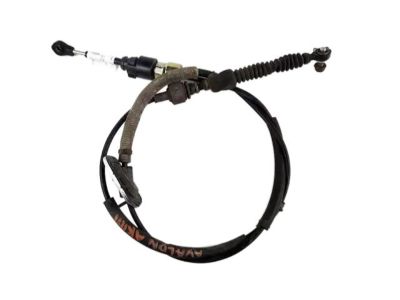

Toyota Avalon Shift Control Cable
Part Number: 33820-07120$211.20 MSRP: $301.55You Save: $90.35 (30%)Ships in 1-3 Business DaysToyota Avalon Shift Control Cable
Part Number: 33820-07090$205.14 MSRP: $292.90You Save: $87.76 (30%)Ships in 1-3 Business Days

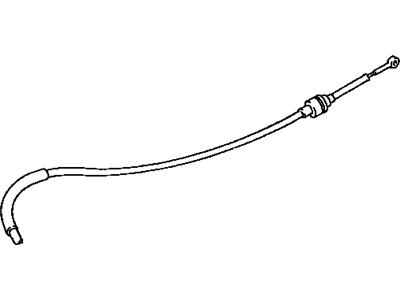

Toyota Avalon Control Cable
Part Number: 33820-06590$210.97 MSRP: $301.22You Save: $90.25 (30%)Ships in 1-3 Business Days
Toyota Avalon Control Cable
Part Number: 33820-06530$258.50 MSRP: $369.08You Save: $110.58 (30%)Ships in 1-3 Business Days
Toyota Avalon Cable Assembly, Transmission Control
Part Number: 33820-06520$211.20 MSRP: $301.55You Save: $90.35 (30%)Ships in 1-3 Business Days
Toyota Avalon Shift Control Cable
Part Number: 33820-07110$165.78 MSRP: $234.69You Save: $68.91 (30%)
Toyota Avalon Shift Cable
Choose genuine Shift Cable that pass strict quality control tests. You can trust the top quality and lasting durability. Shopping for OEM Shift Cable for your Toyota Avalon? Our website is your one-stop destination. We stock an extensive selection of genuine Toyota Avalon parts. The price is affordable so you can save more. It only takes minutes to browse and find the exact fit. Easily add to cart and check out fast. Our hassle-free return policy will keep you stress-free. We process orders quickly for swift delivery. Your parts will arrive faster, so you can get back on the road sooner.
Toyota Avalon Shift Cable Parts and Q&A
- Q: How to remove the U660E automatic transaxle Shift Cable assembly on Toyota Avalon?A:One must begin the U660E automatic transaxle transmission control cable assembly replacement by removing the air conditioning unit. You must remove the center air bag sensor assembly before you proceed to remove the cool air intake duct seal along with the NO. 2 air cleaner inlet followed by the air cleaner cap with air cleaner hose and air cleaner case before taking out the NO. 1 air cleaner inlet. Start by performing transmission control cable assembly removal through carpet access while removing the 2 bolts then disconnecting the grommet retainer and driving out the nut from the lever to disconnect the cable assembly from the control shaft lever. First step is to detach the clip before disconnecting the transmission control cable assembly from the NO. 1 transmission control cable bracket. The procedure continues with separate detachment of the assembly from the transmission floor shift assembly before extracting the transmission control cable assembly from the body.
- Q: How to service and repair the Shift Cable assembly on Toyota Avalon?A:Starting the transmission control cable assembly repair requires performing disconnection of the cable from the negative battery terminal. Remove the shift lever knob sub-assembly, position indicator housing assembly, console box upper, console panel sub-assembly upper, console box assembly, console box front, Air Bag Sensor assembly center, air cleaner assembly, intake air resonator sub-assembly, engine under cover LH, and finally the transmission control cable assembly by removing the 2 bolts and disconnecting the shift cable grommet retainer No. 2, the nut from the control shaft lever, and the cable from the control shaft lever and control cable bracket. Drop the control cable from the body by extracting its end from the control cable clamp while removing shift cable grommet retainer No. 2. Verify that the transmission shifts from standing starts in N to D and shifts back in R while the shift lever moves effortlessly from P to R. Begin by loosening the control shaft lever nut followed by pressing the control shaft fully down until reaching the two notches at the N position. Using the up position of the control cable end when the shift lever is in N, install both parts to the control shaft lever then torque the nut to 15 N m (150 kgf cm, 10 ft. lbf). The control cable should receive standard stretching before tightening the nut while avoiding excessive position change during installation. The current positions of the vehicle should be verified once the engine starts. To install the transmission control cable assembly connect shift cable grommet retainer No. 2 to the floor shift cable and insert the control cable into the body while placing the uneven surface facing upward before securing the floor shift cable. The control cable needs installation onto the control cable clamp then the transmission control cable assembly should be fitted to the control shaft lever with a nut while it meets up with the bracket using a new clip. The installation process includes applying 5.0 N m (50 kgf cm, 43 in. lbf) torque when joining shift cable grommet retainer No. 2 with 2 bolts before proceeding with the intake air resonator sub-assembly, air cleaner assembly, air bag sensor assembly center, console box front, console box assembly, console panel sub-assembly upper, console box upper, position indicator housing assembly, and shift lever knob sub-assembly. Inspection of shift lever position should occur after reconnecting the cable to its corresponding negative terminal point.
