OEM Scion tC Windshield

Scion tC Windshield Parts Questions & Experts Answers

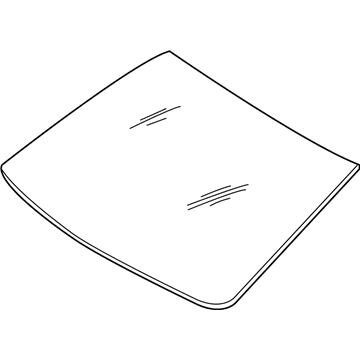

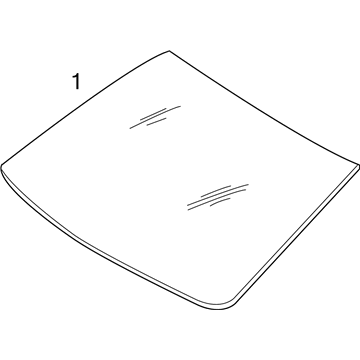

• Windshield, Front
  56111-21190
  Q: How to install windshield glass on Scion tC?

  A: Start by applying Primer G to the installation portion of the No. 2 windshield glass stoppers before the drying process takes at least 3 minutes then dispose of leftover primer. Place two new stoppers onto the windshield glass before fitting two new stoppers onto the vehicle body. Primer G should be applied to the glass surface where adhesive dams will be mounted and should be allowed to dry for 3 minutes before removing the residue with white gasoline. Put adhesive parts of the dam on the windshield glass by removing the peeling paper before you position the glass using suction cups. Keep the contact surfaces even before making matchmarks for new glass installation. First spread Primer M on the uncovered vehicle body segment and let it dry for 3 minutes before treating the glass surface with Primer G that needs 3 minutes to evaporate. Use the adhesive (Part No. 08850-00801 or equivalent) for glass application but do it within the cartridge nozzle time limit after the cartridge nozzle needs cutting. Apply the glass to its body position while matching the marks together and gently press it to the rim before securing it with protective tape until the adhesive sets. The technician should apply Primer G to the outside windshield glass contact surface then line up moulding marks with glass notches before the adhesive becomes dry. A leak test should be performed after the adhesive hardens before using auto glass sealer to repair leaks and reinstalling the negative battery terminal and executing system initialization due to system requirements.
