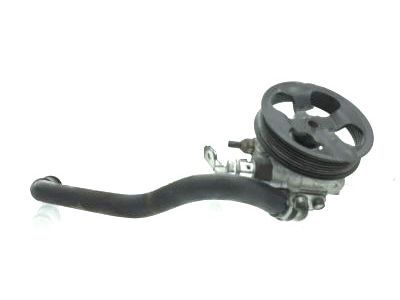

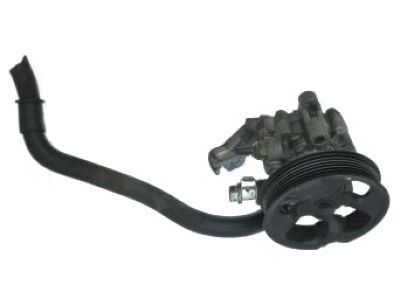

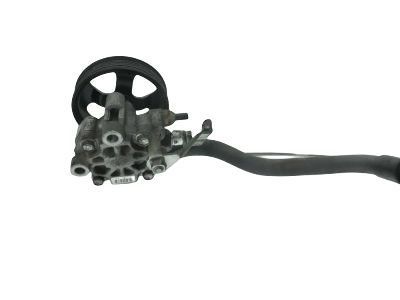

Toyota 44310-21050
Power Steering Pump

Your first action in servicing or repairing the power steering pump should involve removing the RH front wheel followed by drain pumping the power steering fluid then removing the front fender apron seal RH. Start by extracting the fan and generator V belt before unclipping the No. 1 oil reservoir to pump hose. It is essential to take care when working with the V belt to avoid fluid leakage. The pressure feed tube assembly can be detached through the removal of its bolt and subsequent disconnection from the pump bracket rear while using a 27 mm wrench to maintain pressure port union stability during screw and gasket removal. The vane pump assembly removal begins by disconnecting the oil pressure switch connector followed by using SST 09249-63010 to loosen the 2 bolts which will enable removal of the vane pump. Fix the vane pump assembly inside an SST 09630-00014 (09631-00132) vise prior to removing the rear vane pump bracket and power steering suction union port bolt with O-ring. After removal of the flow control valve and pressure port union and its O-ring the power steering oil pressure switch should be replaced if found damaged. Access the rear vane pump housing by unfastening its 4 bolts and O-ring before you disassemble the shaft sub-assembly with pulley by applying 2 screwdrivers to remove the snap ring. The technician should commence the disassembly by taking out the vane pump rotor and the 10 vane pump plates together with the vane pump cam ring and front vane pump side plate where all components require O-ring removal. The removal of the vane pump housing oil seal requires special care because it may damage the front housing structure. A professional should check the oil clearance between vane pump shaft and bush in housing front by measuring to prevent excess clearance of 0.07 mm (0.0028 inch). The thickness measurement of vane pump plates should fall within the range of 1.405 to 1.411 mm (0.05531 to 0.05555 inch) while maintaining a clearance check between vane pump rotor groove and vane plates under 0.03 mm (0.0012 inch). Check the flow control valve for proper operation and leakage while measuring its compression spring free length to be at minimum 36.9 mm (1.453 inch). The vane pump assembly requires replacement when additional specifications or damage signs appear in any component. To install the new oil seal apply power steering fluid onto its lips before insertion with SST 09950-60010 (09951-00280) or 09950-70010 (09951-07100) while maintaining the precise installation direction. Put the pulley shaft inside slowly while checking for damage to the oil seal lip before placing the front vane pump side plate with O-rings correctly positioned. Enable vane pump cam ring installation by placing its inscribed mark at the top before inserting vane pump rotor and plates where round ends must face outward. Place a new snap ring on the shaft before applying power steering fluid to a fresh O-ring which you will install onto the rear housing after positioning it correctly then applying four bolts with 22 Nm (224 kgf-cm, 16 ft. lbs. of torque. The service bolt installation should proceed after ensuring the pump operates without resistance while measuring the pulley rotating torque where 0.27 Nm (2.8 kgf-cm, 2.4 ft. lbs.) represents an acceptable reading criterion. When mounting the power steering oil pressure switch it should have 21 Nm torque (214 kgf-cm, 15 ft. lbs.) and flow control valve plus compression spring must follow with power steering fluid application before final installation. Mount the pressure port union by applying 69 Nm torque to the new O-ring before securing the rear vane pump bracket at 37 Nm to allow the stopper to contact the body of the pump. The power steering suction port union gets installed using a new O-ring at 12 Nm of torque (122 kgf-cm, 9 ft. lbs.) before the vane pump assembly goes in and the bolts should be tightened at 34 Nm (347 kgf-cm, 25 ft. lbs.) using tool SST 09249-63010. Carefully connect the pressure feed tube assembly and the No. 1 oil reservoir for the pump hose tubing before reinstalling the fan and generator V belt and the front fender apron seal RH along with the front wheel RH. Perform a fluid bleed on power steering then investigate for any fluid leakage.

The first step to remove the power steering vane pump begins by removing the front right wheel followed by draining the power steering fluid. The component requires removal of the front fender apron seal that faces the right side. You need to both remove the fan along with the generator V belt. Remove the clip from the No. 1 oil reservoir to pump hose while keeping the V belt area clean of fluid leakage. Use a 27 mm wrench to hold the pressure port union while removing the union bolt and gasket. You should then disconnect the pressure feed tube assembly by first detaching the tube from the pump bracket rear and secondly by taking out the bolt. To complete the removal disconnect the oil pressure switch connector after using Special Service Tool: 09249-63010 along with a 14 mm deep socket to loosen the two bolts and separate the vane pump assembly.

Disconnect the connector from the oil pressure switch, loosen the 2 bolts with Special Service Tool: 09249-63010 and a 14 mm deep socket, and then remove the vane pump.

Temporarily install the 2 bolts to the vane pump, then secure the vane pump with these bolts.

Secure the vane pump assembly in a vise using Special Service Tool: 09630-00014 09631-00132, ensuring not to overtighten.

The torque wrench has a fulcrum length of 300 mm (11.81 in.) and the tool is parallel to the wrench during the process.
