Toyota 48812-0R010

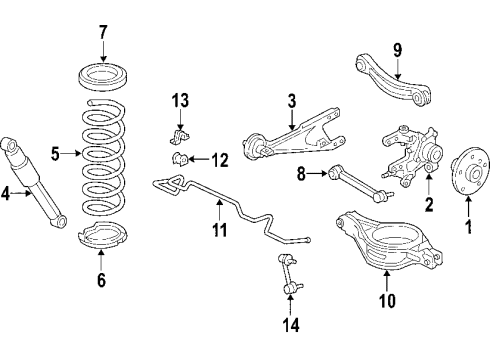

Stabilizer Bar, Rear

The first action for removing the rear sway bar kit should include taking out the rear wheel. The first step involves taking off the nut from the rear sway bar link assembly at the LH side then unlinking it from the suspension No. 2 arm before removing the nut and link from the sway bar kit. The RH side follows the same procedure. Perform the same procedure for the RH rear side. The removal process starts with taking away the rear No. 2 suspension arm assembly from the LH side then repeating it on the RH side according to previous procedures. The next step requires the removal of the rear coil spring insulator upper LH followed by taking off the rear coil spring LH as well as the rear coil spring insulator lower LH. Strong context: The rear coil spring insulator upper RH along with the rear coil spring RH and the rear coil spring insulator lower RH need removal on the right-hand side by following the same procedures. Remove the rear No. 1 sway bar bracket starting with the removal of two nuts and the bracket before proceeding to take out the sway bar kit from the vehicle in a manner that avoids damage to the sensor wire and brake hose and other components. Complete this task by taking out the two sway bar bushes which belong to the sway bar kit.

Take out the 4 bolts securing it to the crossmember on the left side, and use the same method for the right side.

Repeat the process for the rear stabilizer link assembly on the RH side.

Install the rear coil spring insulators and springs for both sides.

Unscrew the 4 bolts that secure it to the crossmember.
